FB-1744

CORNER LIFT HINGES

FB-744

CORNER LIFT HINGES

CORNER LIFT HINGES

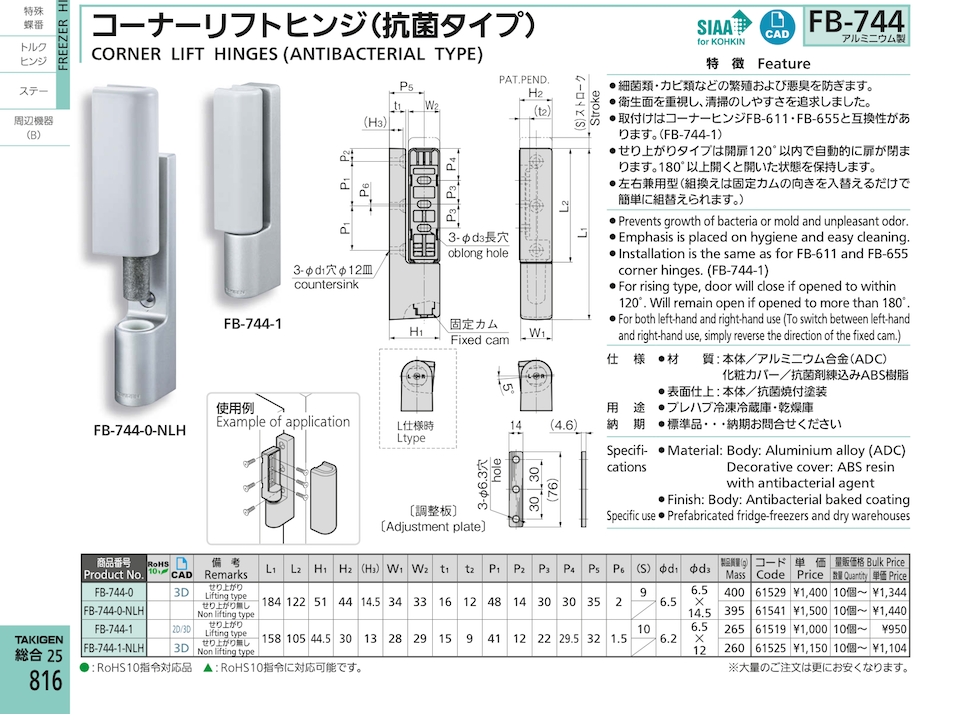

CORNER LIFT HINGES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
FB-744-0 Lifting type 61529

Request for Quote

FB-744-0-NLH Non lifting type 61541

Request for Quote

FB-744-1 Lifting type 61519

Request for Quote

FB-744-1-NLH Non lifting type 61525

Request for Quote

FB-1744-1 Lifting type 61556

Request for Quote

FB-1744-1-NLH Non lifting type 61557

Request for Quote

Features

    • Interchangeable with Corner Lift Hinge FB-611 / FB-655. (FB-1744-1, FB-744-1)
    • For rising type, door will close if opened to within 120°. Will remain open if opened to more than 180°.
    • Stainless, corrosion-resistant. (FB-1744-1)
    • Emphasized hygienity with easy-to-clean design
    • Registered SIAA item. Prevents spread of germs and mold as well as odors (FB-744).
    • For both left-hand and right-hand use (can be rearranged easily by reversing the fixed cam)

Specifications

    FB-744
    • Material: Body: Aluminium alloy (ADC)
      Decorative cover: ABS resin with antibacterial agent
    • Finish: Body: Antibacterial baked coating

    FB-1744
    • Material:Main body: Cast stainless steel (SUS304)
      Decorative cover: Stainless steel sheet (SUS304)
    • Finish:Main body: Electrolytic polishing
      Decorative cover: Hairline finish

Specific Use

    • Prefab cold storage box, dry-type warehouse

Remarks

    • FB-744-1 is interchangeable with FB-1744-1
