K-800-5

IN-VEHICLE MONITOR ARM

K-800-6

IN-VEHICLE MONITOR ARM

IN-VEHICLE MONITOR ARM

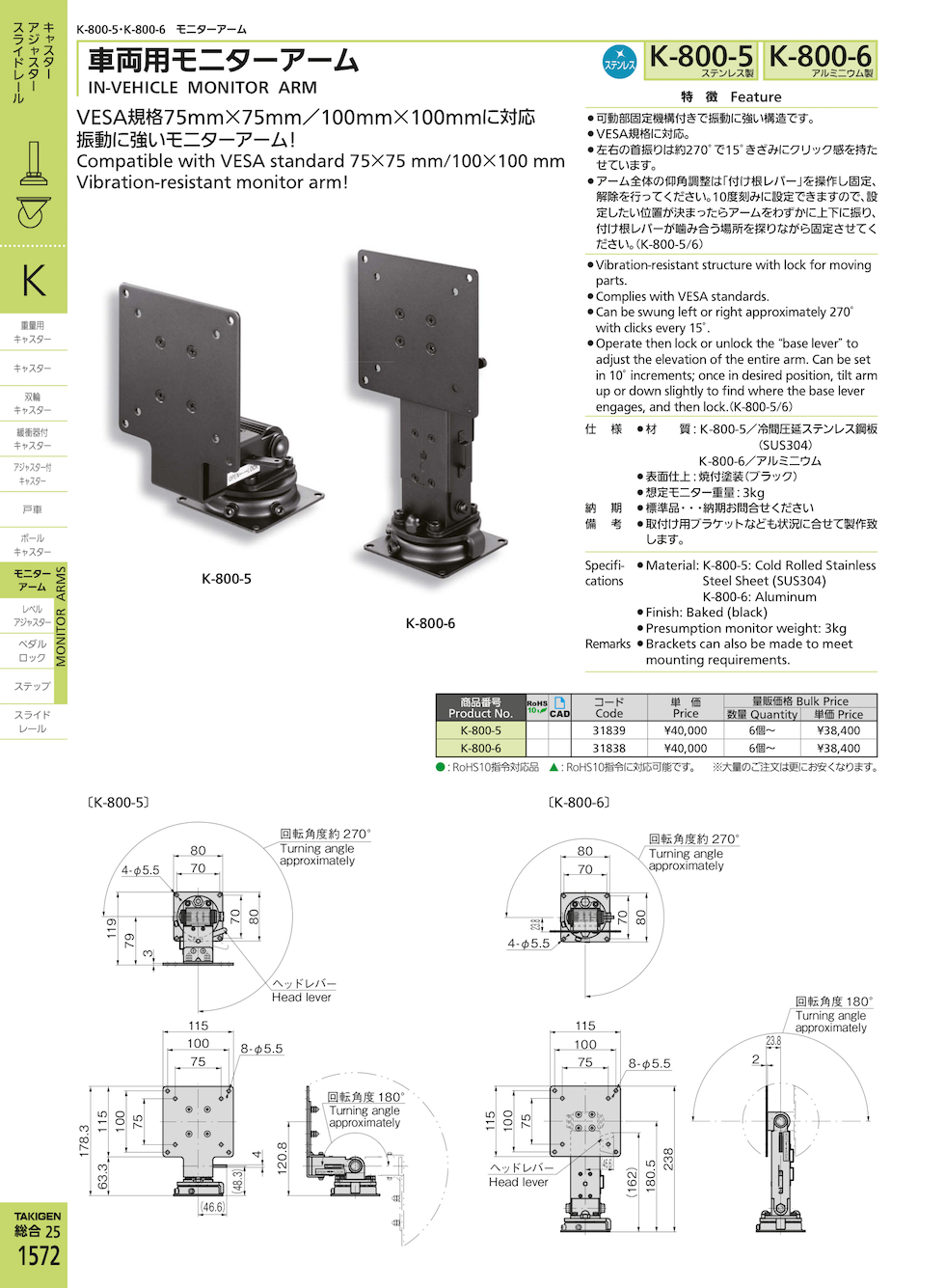

IN-VEHICLE MONITOR ARM Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
K-800-5 31839

Request for Quote

K-800-6 31838

Request for Quote

Features

    • Vibration-resistant structure with lock for moving parts.
    • Complies with VESA standards.
    • Can be swung left or right approximately 270° with clicks every 15°.
    • Operate then lock or unlock the "base lever" to adjust the elevation of the entire arm. Can be set in 10° increments; once in desired position, tilt arm up or down slightly to find where the base lever engages, and then lock.(K-800-5/6)

Specifications

    • Material: K-800-5: Cold Rolled Stainless Steel Sheet (SUS304)
      K-800-6: Aluminum
    • Finish: Baked (black)
    • Presumption monitor weight: 3kg

Remarks

    • Brackets can also be made to meet mounting requirements.
