KC-1275-D

LEVEL ADJUSTER

KC-275-D

LEVEL ADJUSTER

LEVEL ADJUSTER

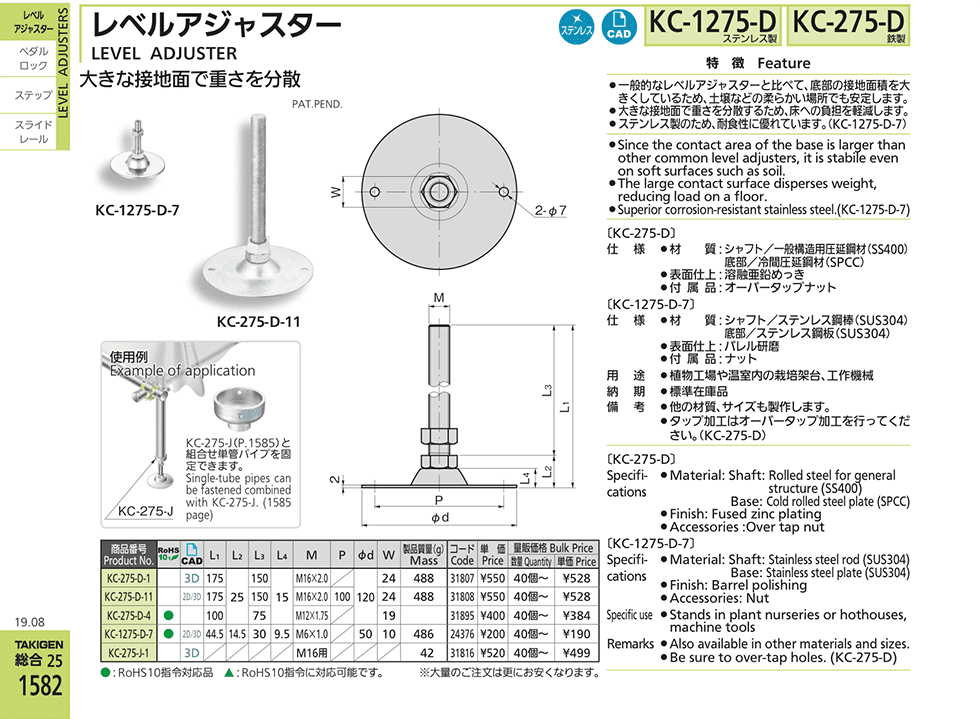

LEVEL ADJUSTER Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
KC-275-D-1 31807

Request for Quote

KC-275-D-11 31808

Request for Quote

KC-1275-D-7 24376

Request for Quote

Features

    • Since the contact area of the base is larger than other common level adjusters, it is stabile even on soft surfaces such as soil.
    • The large contact surface disperses weight, reducing load on a floor.
    • Superior corrosion-resistant stainless steel.(KC-1275-D-7)

Specifications

    KC-1275-D
    • Material: Shaft: Stainless steel rod (SUS304)
      Base: Stainless steel plate (SUS304)
    • Finish: Barrel polishing
    • Accessories: Nut

    KC-275-D
    • Material: Shaft: Rolled steel for general structure (SS400)
      Base: Cold rolled steel plate (SPCC)
    • Finish: Fused zinc plating
    • Accessories :Over tap nut

Specific Use

    • Stands in plant nurseries or hothouses, machine tools

Remarks

    • Also available in other materials and sizes.
    • Be sure to over-tap holes. (KC-275-D)
