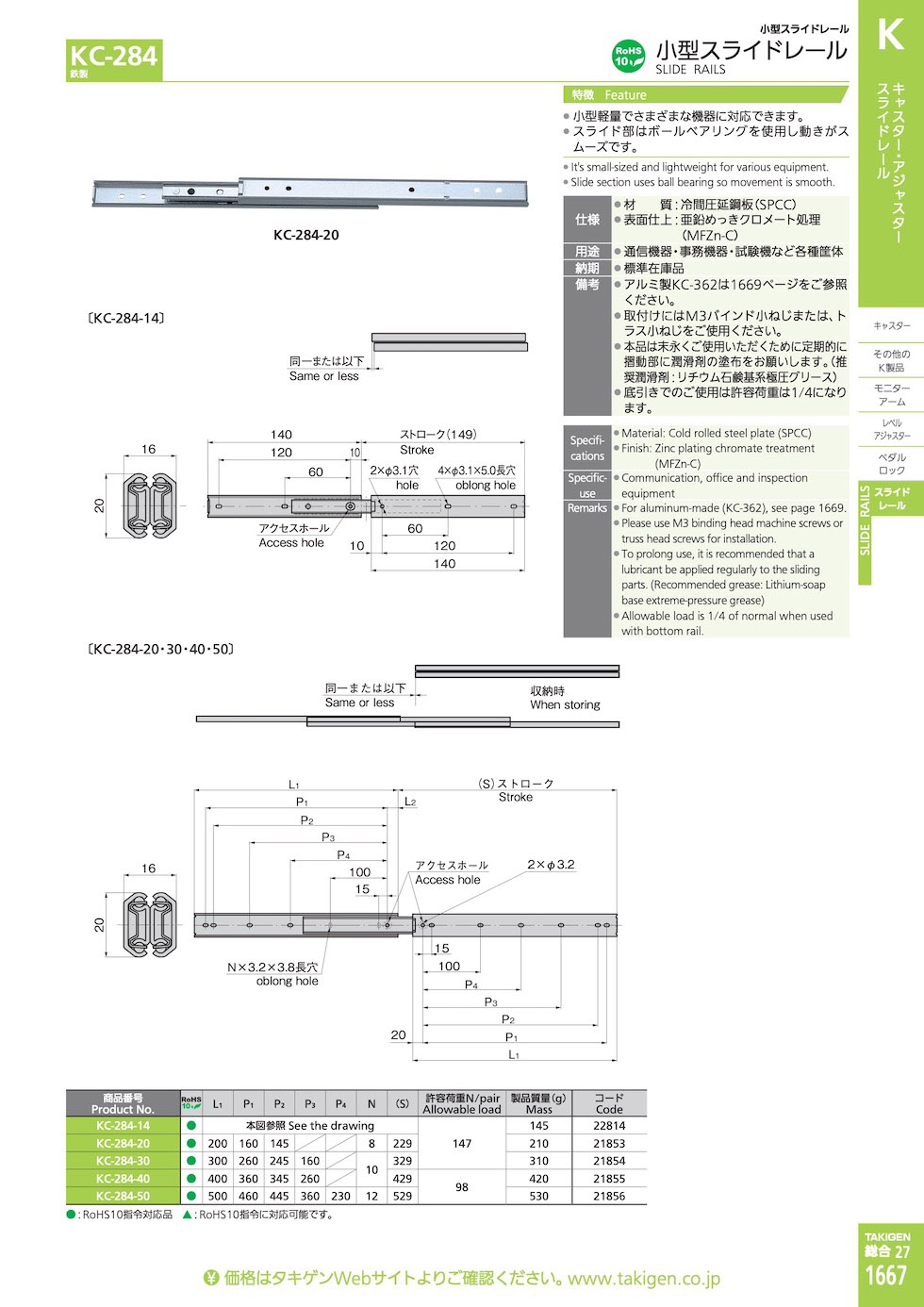

KC-284
SLIDE RAILS
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| KC-284-14 |
|
22814 | ||||
| KC-284-20 |
|
21853 | ||||
| KC-284-30 |
|
21854 | ||||
| KC-284-40 |
|
21855 | ||||
| KC-284-50 |
|
21856 |
Features
- It's small-sized and lightweight for various equipment.
- Slide section uses ball bearing so movement is smooth.
Specifications
- Material: Cold rolled steel plate (SPCC)
- Finish: Zinc plating chromate treatment (MFZn-C)
Specific Use
- Communication, office and inspection equipment
Remarks
- For aluminum-made (KC-362), see page 1669.
- Please use M3 binding head machine screws or truss head screws for installation.
- To prolong use, it is recommended that a lubricant be applied regularly to the sliding parts. (Recommended grease: Lithium-soap base extreme-pressure grease)
- Allowable load is 1/4 of normal when used with bottom rail.
