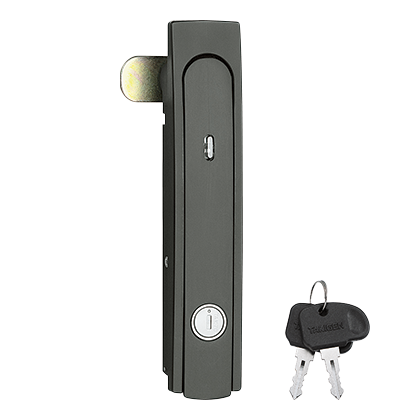

LE-469-DC
ELECTROMAGNETIC LOCK FLUSH HANDLES

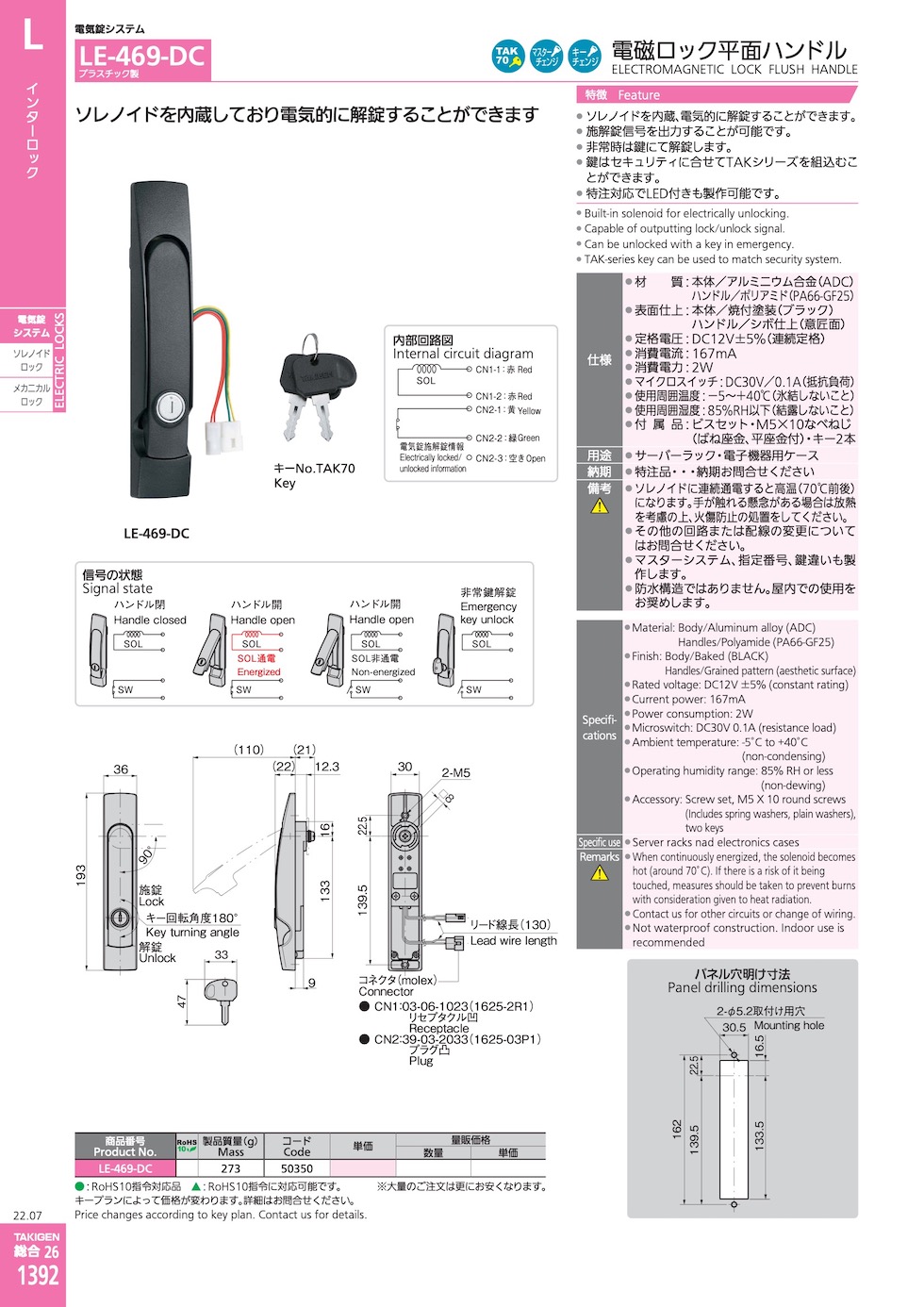

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| LE-469-DC | 50350 |
Features
- Built-in solenoid for electrically unlocking.
- Capable of outputting lock/unlock signal.
- Can be unlocked with a key in emergency.
- TAK-series key can be used to match security system.
Specifications
- Material: Body/Aluminum alloy (ADC)
Handles/Polyamide (PA66-GF25) - Finish: Body/Baked (BLACK)
Handles/Grained pattern (aesthetic surface) - Rated voltage: DC12V ±5% (constant rating)
- Current power: 167mA
- Power consumption: 2W
- Microswitch: DC30V 0.1A (resistance load)
- Ambient temperature: -5°C to +40°C
(non-condensing) - Operating humidity range: 85% RH or less
(non-dewing) - Accessory: Screw set, M5 X 10 round screws (Includes spring washers, plain washers), two keys
- Max. applicable panel thickness: 2.3mm
Specific Use
- Server racks nad electronics cases
Remarks
- When continuously energized, the solenoid becomes hot (around 70°C). If there is a risk of it being touched, measures should be taken to prevent burns with consideration given to heat radiation.
- Not waterproof construction. Indoor use is recommended.
