C-836

MOMENTARY LOCKS

MOMENTARY LOCKS

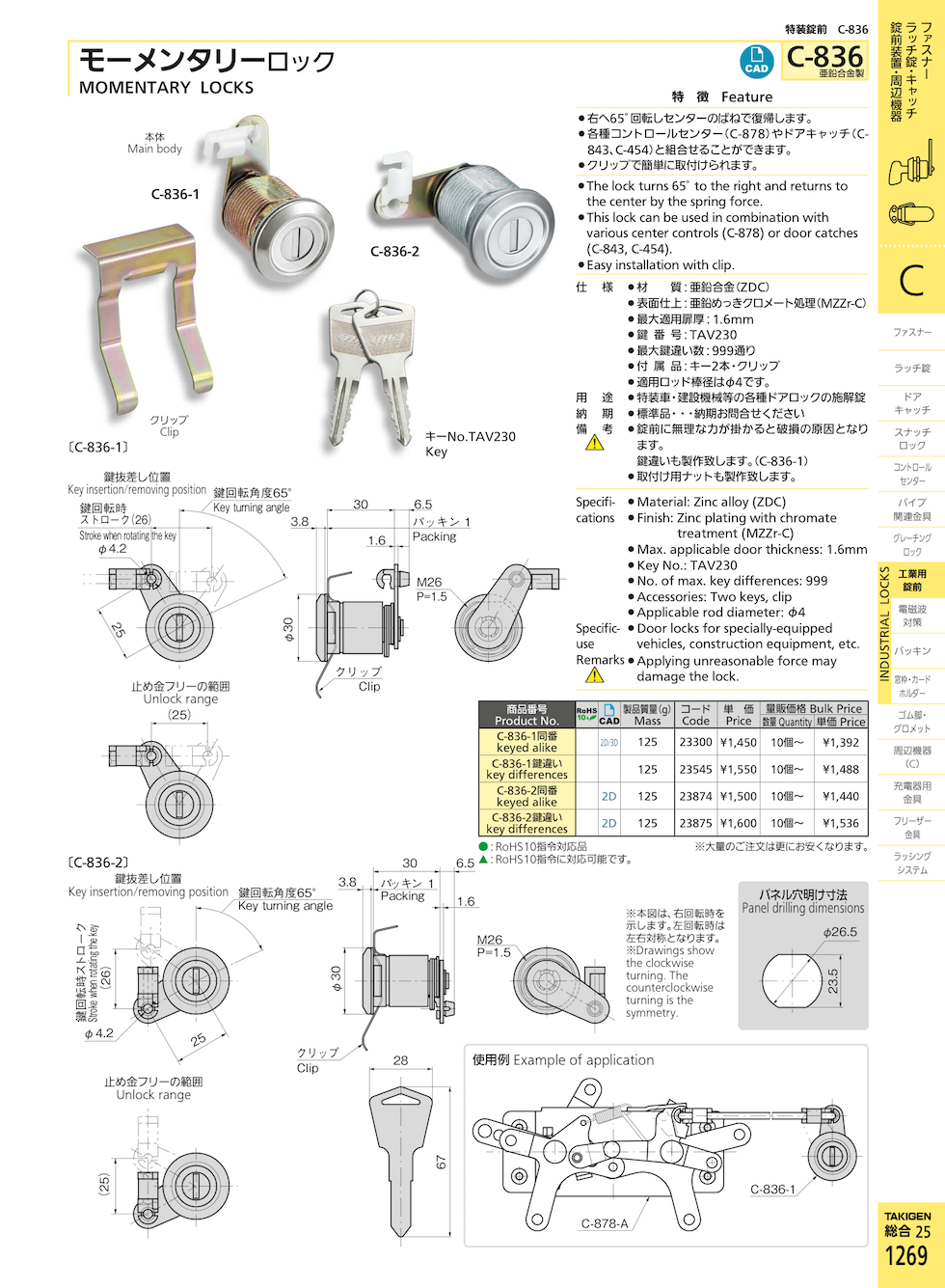

MOMENTARY LOCKS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-836-1 keyed alike 23300

Request for Quote

C-836-1 key differences 23545

Request for Quote

C-836-2 keyed alike 23874

Request for Quote

C-836-2 key differences 23875

Request for Quote

Features

    • The lock turns 65° to the right and returns to the center by the spring force.
    • This lock can be used in combination with various center controls (C-878) or door catches (C-843, C-454).
    • Easy installation with clip.

Specifications

    • Material: Zinc alloy (ZDC)
    • Finish: Zinc plating with chromate treatment (MZZr-C)
    • Max. applicable door thickness: 1.6mm
    • Key No.: TAV230
    • No. of max. key differences: 999
    • Accessories: Two keys, clip
    • Applicable rod diameter: φ4

Specific Use

    • Door locks for specially-equipped vehicles, construction equipment, etc.

Remarks

    • Applying unreasonable force may damage the lock.
