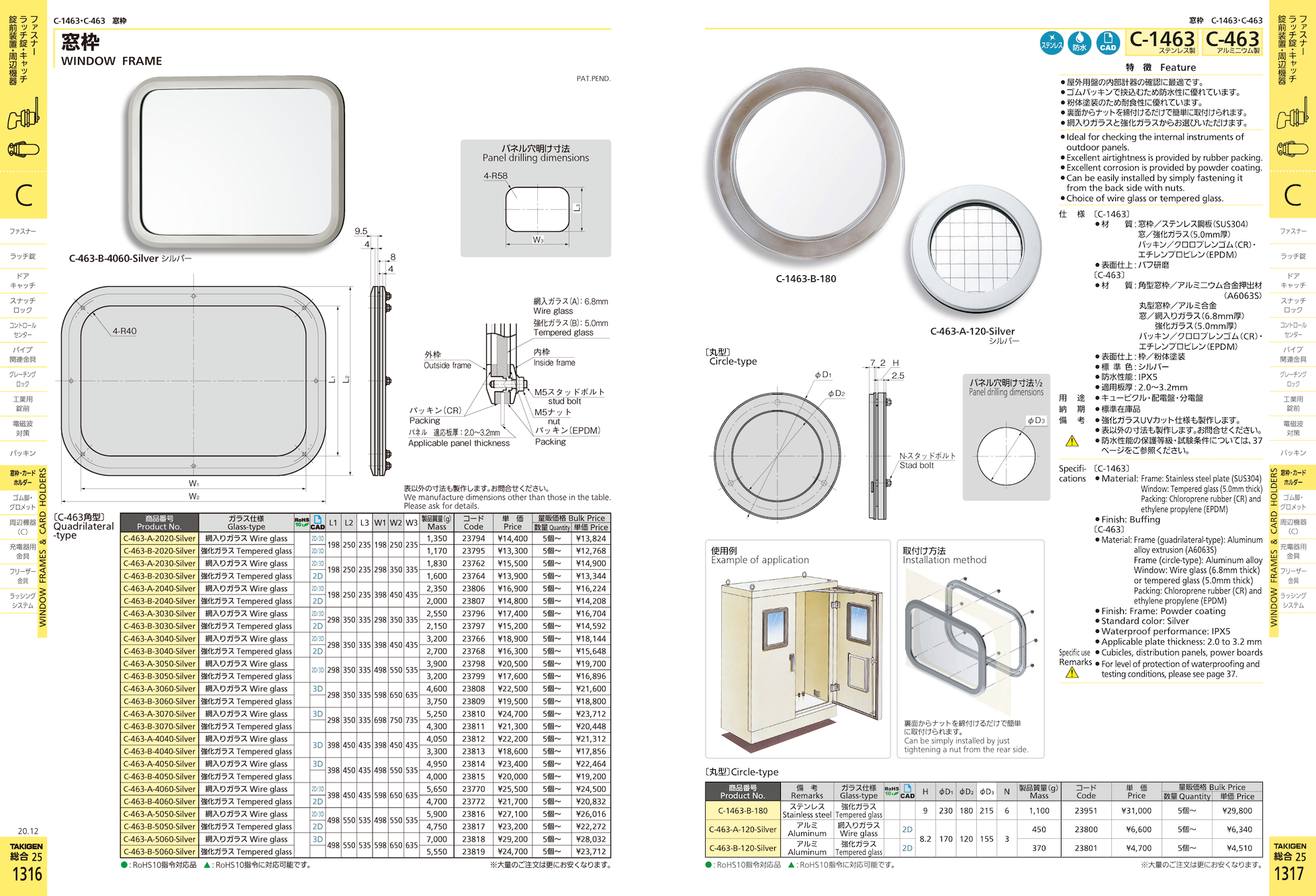

C-1463

WINDOW FRAME

C-463

WINDOW FRAME

WINDOW FRAME
WINDOW FRAME Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-463-A-2020-Silver Silver 23794

Request for Quote

C-463-B-2020-Silver Silver 23795

Request for Quote

C-463-A-2030-Silver Silver 23762

Request for Quote

C-463-B-2030-Silver Silver 23764

Request for Quote

C-463-A-2040-Silver Silver 23806

Request for Quote

C-463-B-2040-Silver Silver 23807

Request for Quote

C-463-A-3030-Silver Silver 23796

Request for Quote

C-463-B-3030-Silver Silver 23797

Request for Quote

C-463-A-3040-Silver Silver 23766

Request for Quote

C-463-B-3040-Silver Silver 23768

Request for Quote

C-463-A-3050-Silver Silver 23798

Request for Quote

C-463-B-3050-Silver Silver 23799

Request for Quote

C-463-A-3060-Silver Silver 23808

Request for Quote

C-463-B-3060-Silver Silver 23809

Request for Quote

C-463-A-3070-Silver Silver 23810

Request for Quote

C-463-B-3070-Silver Silver 23811

Request for Quote

C-463-A-4040-Silver Silver 23812

Request for Quote

C-463-B-4040-Silver Silver 23813

Request for Quote

C-463-A-4050-Silver Silver 23814

Request for Quote

C-463-B-4050-Silver Silver 23815

Request for Quote

C-463-A-4060-Silver Silver 23770

Request for Quote

C-463-B-4060-Silver Silver 23772

Request for Quote

C-463-A-5050-Silver Silver 23816

Request for Quote

C-463-B-5050-Silver Silver 23817

Request for Quote

C-463-A-5060-Silver Silver 23818

Request for Quote

C-463-B-5060-Silver Silver 23819

Request for Quote

C-1463-B-180 Stainless steel 23951

Request for Quote

C-463-A-120-Silver Aluminum Silver 23800

Request for Quote

C-463-B-120-Silver Aluminum Silver 23801

Request for Quote

Features

    • Ideal for checking the internal instruments of outdoor panels.
    • Excellent airtightness is provided by rubber packing.
    • Excellent corrosion is provided by powder coating.
    • Can be easily installed by simply fastening it from the back side with nuts.
    • Choice of wire glass or tempered glass.

Specifications

    C-1463
    • Material: Frame: Stainless steel plate (SUS304)
      Window: Tempered glass (5.0mm thick)
      Packing: Chloroprene rubber (CR) and ethylene propylene (EPDM)
    • Finish: Buffing

    C-463
    • Material: Frame (guadrilateral-type): Aluminum alloy extrusion (A6063S)
      Frame (circle-type): Aluminum alloy
      Window: Wire glass (6.8mm thick) or tempered glass (5.0mm thick)
      Packing: Chloroprene rubber (CR) and ethylene propylene (EPDM)
    • Finish: Frame: Powder coating
    • Standard color: Silver
    • Waterproof performance: IPX5
    • Applicable plate thickness: 2.0 to 3.2 mm

Specific Use

    • Cubicles, distribution panels, power boards

Remarks

    • For level of protection of waterproofing and testing conditions, please see page 37.
