C-164-D-70

EMERGENCY PUSH BUTTON WINDOW FRAME

EMERGENCY PUSH BUTTON WINDOW FRAME

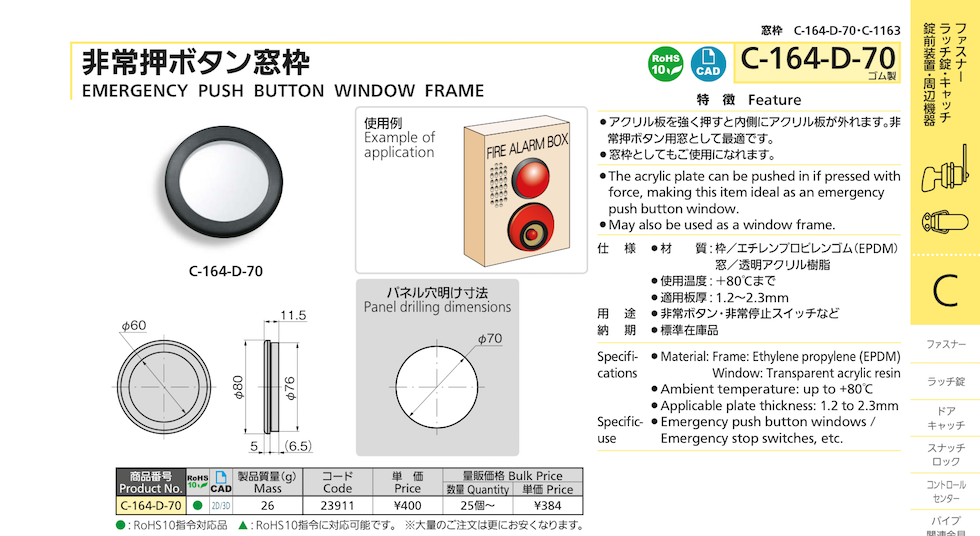

EMERGENCY PUSH BUTTON WINDOW FRAME Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-164-D-70 23911

Request for Quote

Features

    • The acrylic plate can be pushed in if pressed with force, making this item ideal as an emergency push button window.
    • May also be used as a window frame.

Specifications

    • Material: Frame: Ethylene propylene (EPDM)
      Window: Transparent acrylic resin
    • Ambient temperature: up to +80°C
    • Applicable plate thickness: 1.2 to 2.3mm

Specific Use

    • Emergency push button windows / Emergency stop switches, etc.
