C-1563-H

D-CUT IT-FASTENERS

C-1563-Z

D-CUT IT-FASTENERS

D-CUT IT-FASTENERS

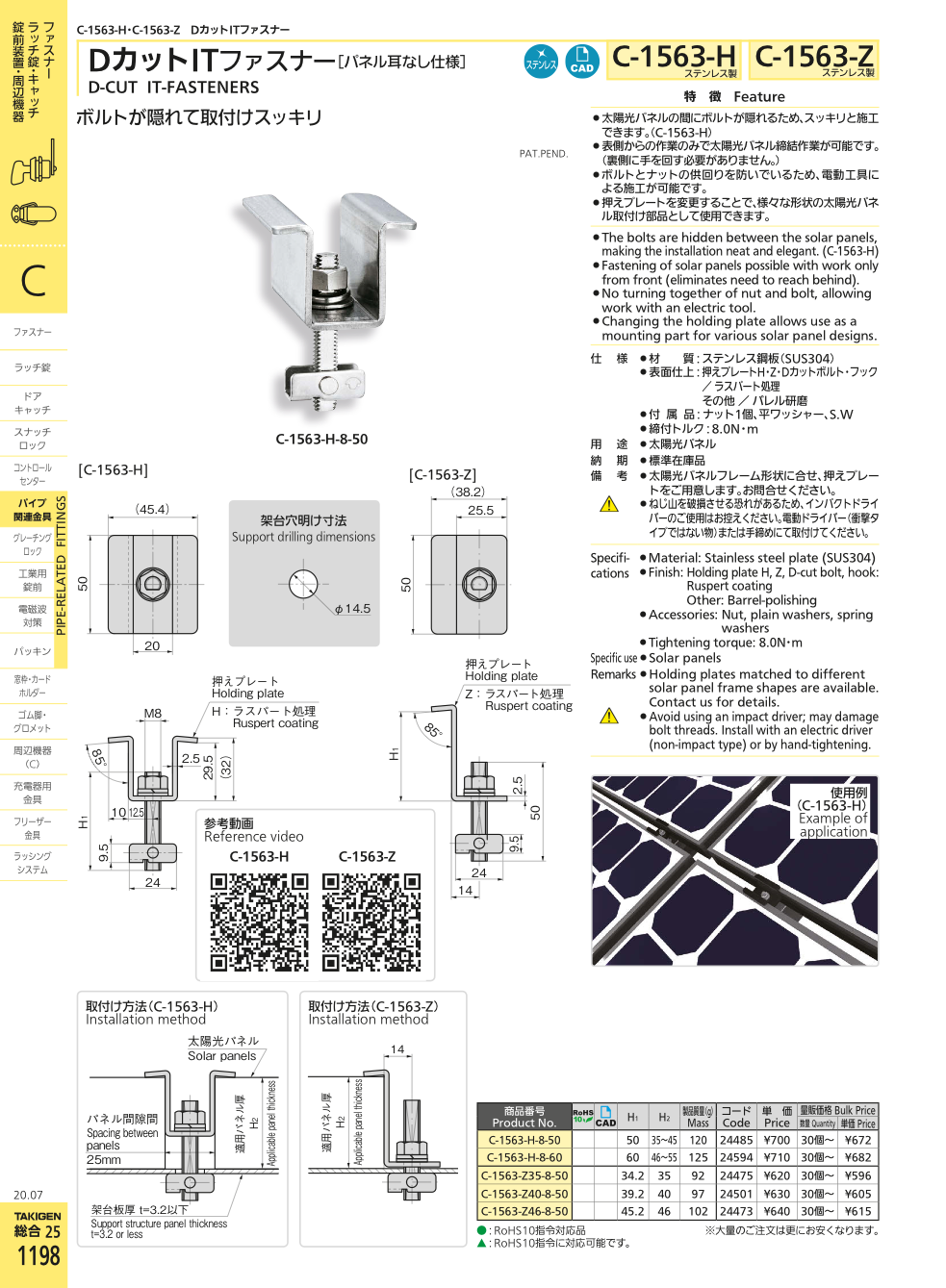

D-CUT IT-FASTENERS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1563-H-8-50 24485

Request for Quote

C-1563-HK-8-50 24490

Request for Quote

C-1563-H-8-60 24594

Request for Quote

C-1563-HK-8-60 24595

Request for Quote

C-1563-Z35-8-50 24475

Request for Quote

C-1563-ZK35-8-50 24474

Request for Quote

C-1563-Z40-8-50 24501

Request for Quote

C-1563-ZK40-8-50 24522

Request for Quote

C-1563-Z46-8-50 24473

Request for Quote

C-1563-ZK46-8-50 24472

Request for Quote

C-1563-Z50-8-50 24543

Request for Quote

Features

    • The bolts are hidden between the solar panels, making the installation neat and elegant. (C-1563-H)
    • Fastening of solar panels possible with work only from front (eliminates need to reach behind).
    • No turning together of nut and bolt, allowing work with an electric tool.
    • Changing the holding plate allows use as a mounting part for various solar panel designs.

Specifications

    • Material: Stainless steel plate (SUS304)
    • Finish: Holding plate HK, ZK: Baked black
      Holding plate H, Z, D-cut bolt, hook: Ruspert coating
      Other: Barrel-polishing
    • Accessories: Nut, plain washers, spring washers
    • Tightening torque: 8.0N·m

Specific Use

    • Solar panels

Remarks

    • Holding plates matched to different solar panel frame shapes are available. Contact us for details.
    • Avoid using an impact driver; may damage bolt threads. Install with an electric driver (non-impact type) or by hand-tightening.
