A-1891

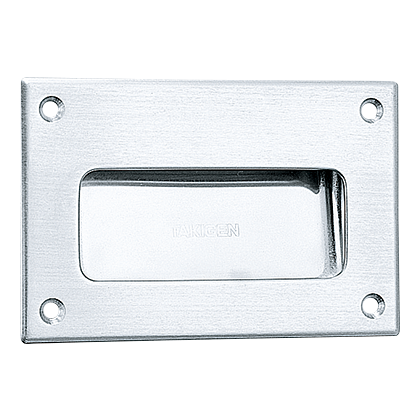

STAINLESS STEEL EMBEDDED PULLS

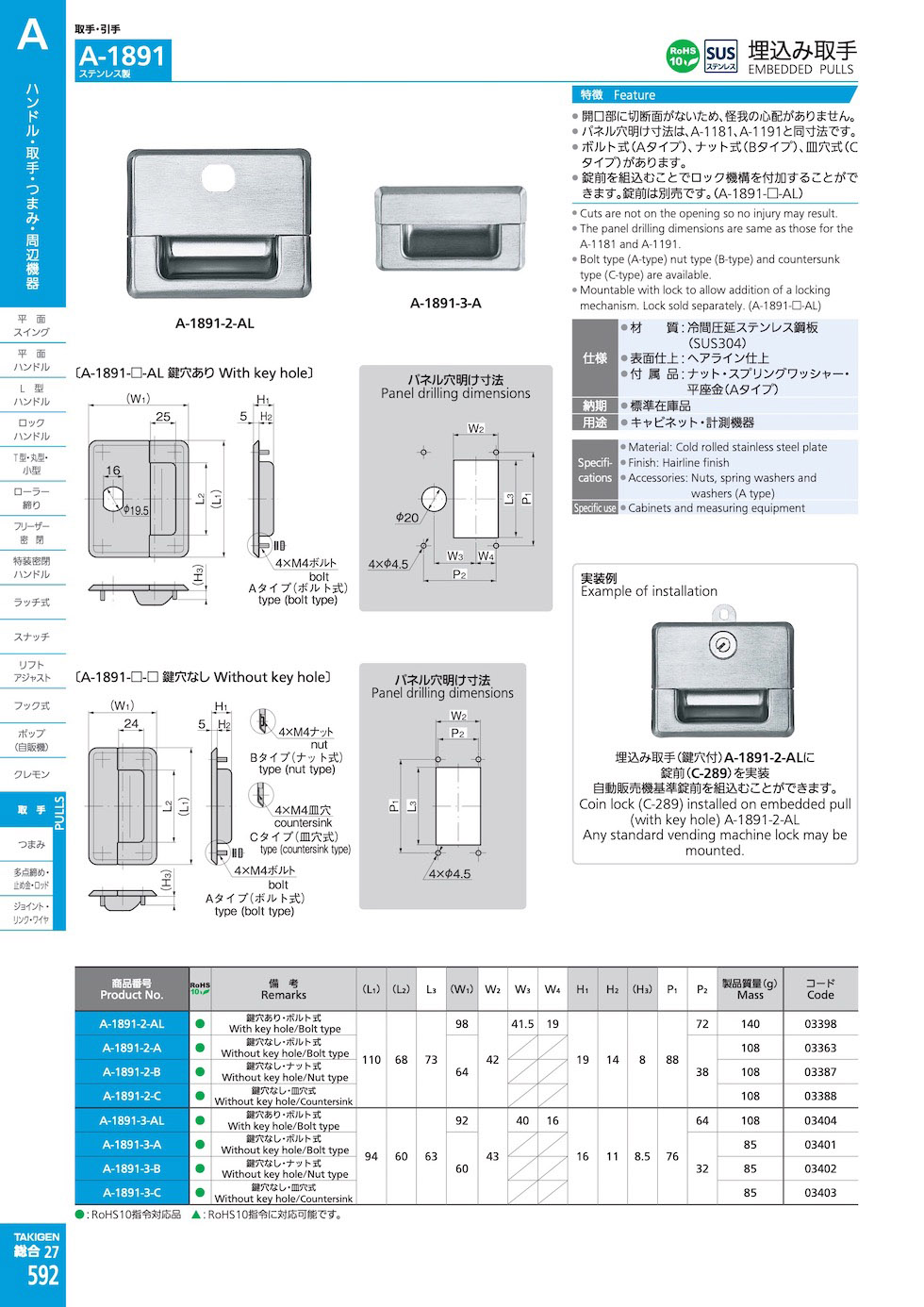

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| A-1891-2-AL |
|
With key hole/Bolt type | 03398 | |||
| A-1891-2-A |
|
Without key hole/Bolt type | 03363 | |||
| A-1891-2-B |
|
Without key hole/Nut type | 03387 | |||
| A-1891-2-C |
|
Without key hole/Countersink | 03388 | |||
| A-1891-3-AL |
|
With key hole/Bolt type | 03404 | |||
| A-1891-3-A |
|
Without key hole/Bolt type | 03401 | |||
| A-1891-3-B |
|
Without key hole/Nut type | 03402 | |||
| A-1891-3-C |
|
Without key hole/Countersink | 03403 |
Features
- Cuts are not on the opening so no injury may result.
- The panel drilling dimensions are same as those for the A-1181 and A-1191.
- Bolt type (A-type) nut type (B-type) and countersunk type (C-type) are available.
- Mountable with lock to allow addition of a locking mechanism. Lock sold separately. (A-1891-□-AL)
Specifications
- Material: Cold rolled stainless steel plate
- Finish: Hairline finish
- Accessories: Nuts, spring washers and washers (A type)
Specific Use
- Cabinets and measuring equipment
