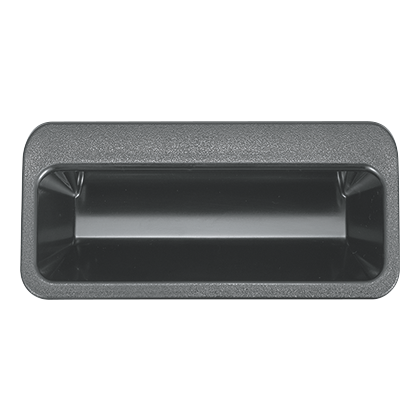

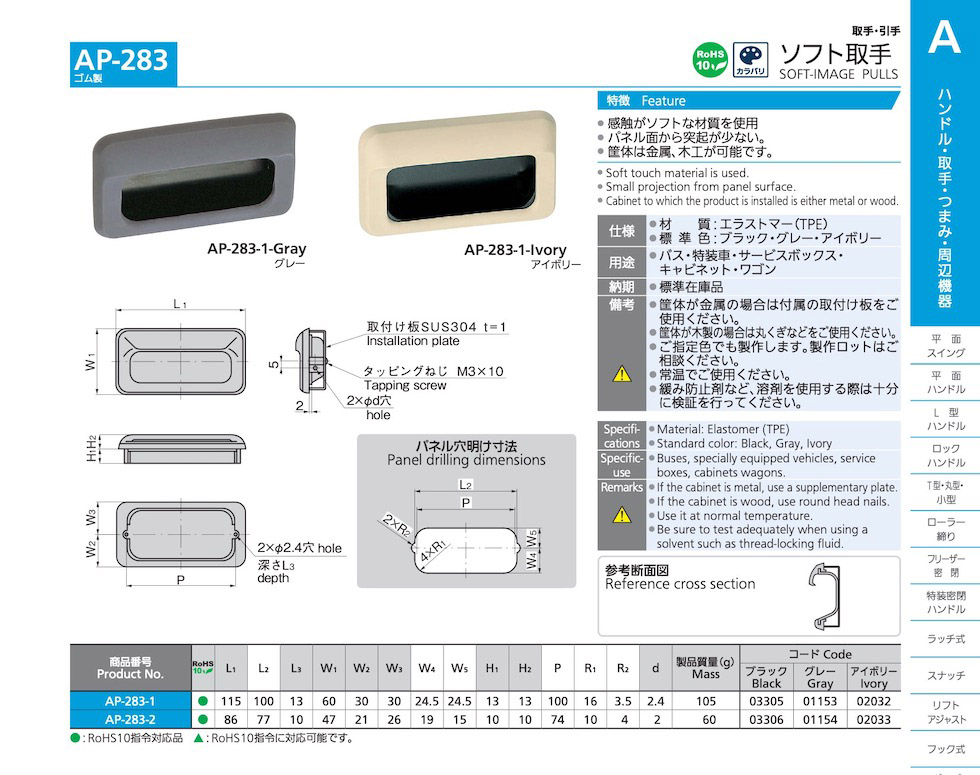

AP-283
SOFT-IMAGE PULLS
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| AP-283-1-Black |
|
Black | 03305 | |||
| AP-283-1-Gray |
|
Gray | 01153 | |||
| AP-283-1-Ivory |
|
Ivory | 02032 | |||
| AP-283-2-Black |
|
Black | 03306 | |||
| AP-283-2-Gray |
|
Gray | 01154 | |||
| AP-283-2-Ivory |
|
Ivory | 02033 |
Features
- Soft touch material is used.
- Small projection from panel surface.
- Cabinet to which the product is installed is either metal or wood.
Specifications
- Material: Elastomer (TPE)
- Standard color: Black, Gray, Ivory
Specific Use
- Buses, specially equipped vehicles, service boxes, cabinets wagons.
Remarks
- If the cabinet is metal, use a supplementary plate.
- If the cabinet is wood, use round head nails.
- Use it at normal temperature.
- Be sure to test adequately when using a solvent such as thread-locking fluid.
