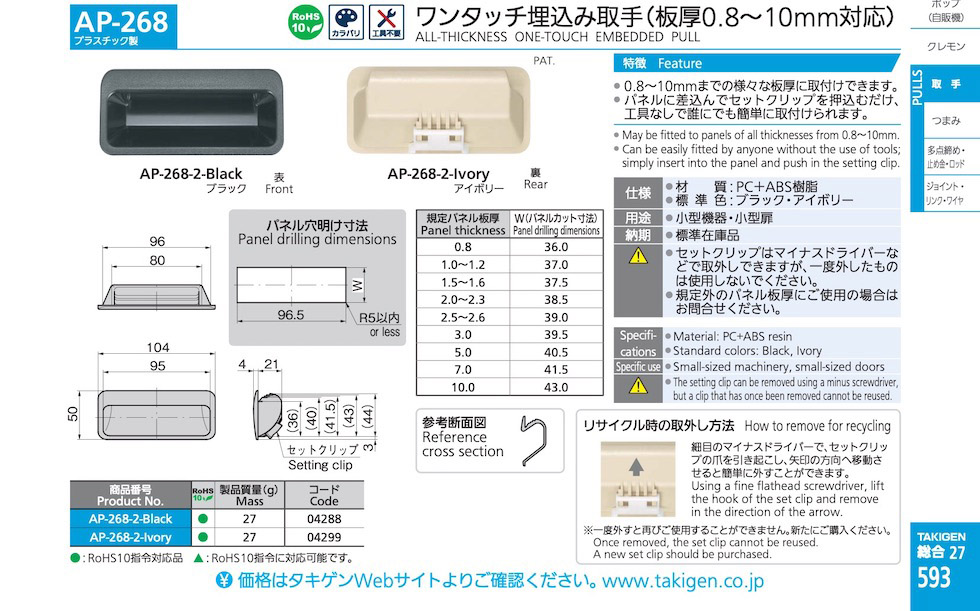

AP-268
ALL-THICKNESS ONE-TOUCH EMBEDDED PULL
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| AP-268-2-Black |
|
Black | 04288 | |||
| AP-268-2-Ivory |
|
Ivory | 04299 |
Features
- May be fitted to panels of all thicknesses from 0.8 to 10mm.
- Can be easily fitted by anyone without the use of tools; simply insert into the panel and push in the setting clip.
Specifications
- Material: PC+ABS resin
- Standard colors: Black, Ivory
Specific Use
- Small-sized machinery, small-sized doors
Remarks
- The setting clip can be removed using a minus screwdriver, but a clip that has once been removed cannot be reused.
