B-156-2
AUTO-ADJUSTING DAMPERS

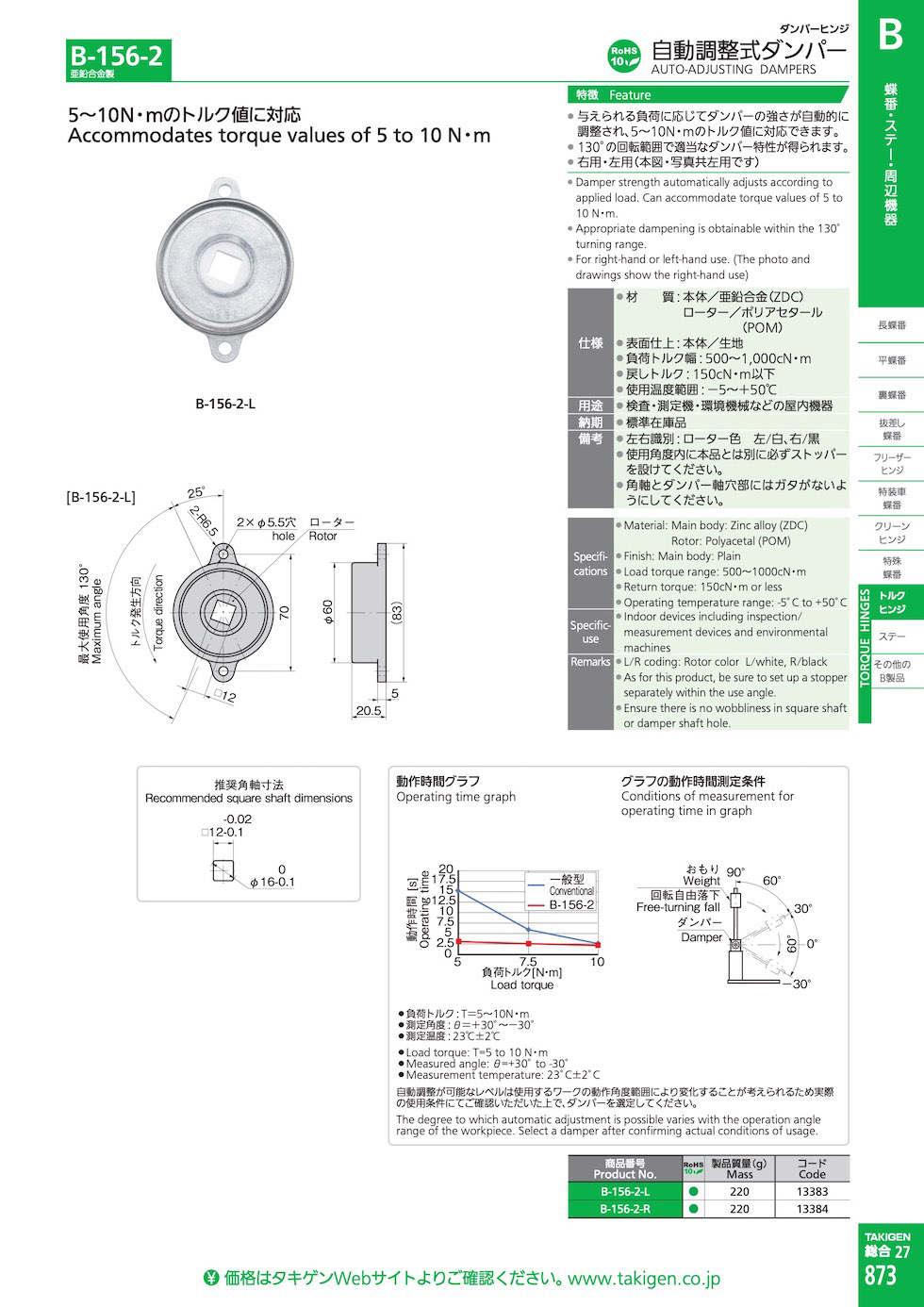

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-156-2-L |
|
13383 | ||||
| B-156-2-R |
|
13384 |
Features
- Damper strength automatically adjusts according to applied load. Can accommodate torque values of 5 to 10 N·m.
- Appropriate dampening is obtainable within the 130° turning range.
- For right-hand or left-hand use. (The photo and drawings show the right-hand use)
Specifications
- Material: Main body: Zinc alloy (ZDC)
Rotor: Polyacetal (POM) - Finish: Main body: Plain
- Load torque range: 500 to 1000cN·m
- Return torque: 150cN·m or less
- Operating temperature range: -5°C to +50°C
Specific Use
- Indoor devices including inspection/measurement devices and environmental machines
Remarks
- L/R coding: Rotor color L/white, R/black
- As for this product, be sure to set up a stopper separately within the use angle.
- Ensure there is no wobbliness in square shaft or damper shaft hole.
