BP-885
ROTARY DAMPERS

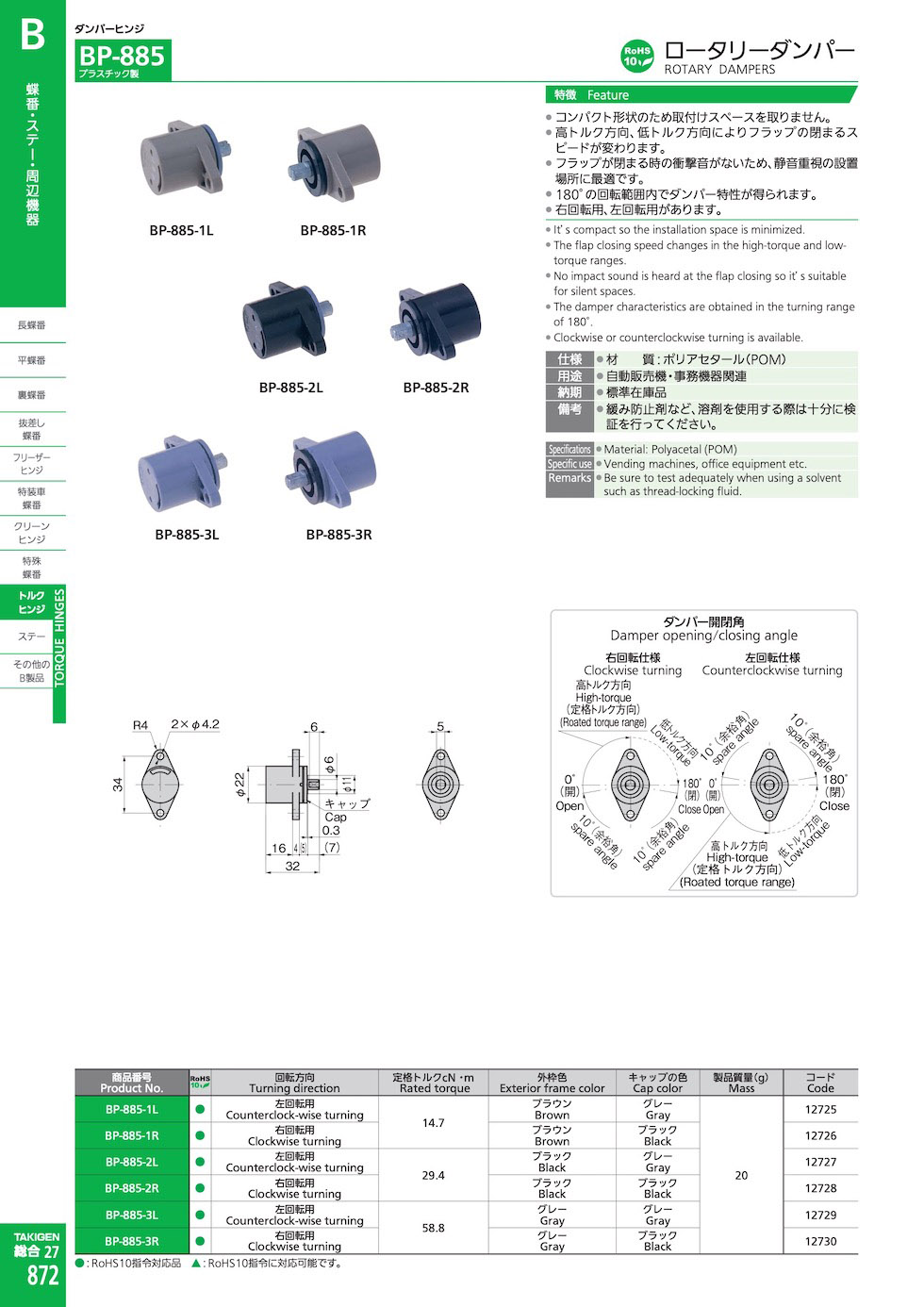

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| BP-885-1L |
|
12725 | ||||
| BP-885-1R |
|
12726 | ||||
| BP-885-2L |
|
12727 | ||||
| BP-885-2R |
|
12728 | ||||
| BP-885-3L |
|
12729 | ||||
| BP-885-3R |
|
12730 |
Features
- It's compact so the installation space is minimized.
- The flap closing speed changes in the high-torque and low-torque ranges.
- No impact sound is heard at the flap closing so it's suitable for silent spaces.
- The damper characteristics are obtained in the turning range of 180°.
- Clockwise or counterclockwise turning is available.
Specifications
- Material: Polyacetal (POM)
Specific Use
- Vending machines, office equipment etc.
Remarks
- Be sure to test adequately when using a solvent such as thread-locking fluid.
