BP-879-2H
TORQUE ADJUSTABLE DAMPER HINGES

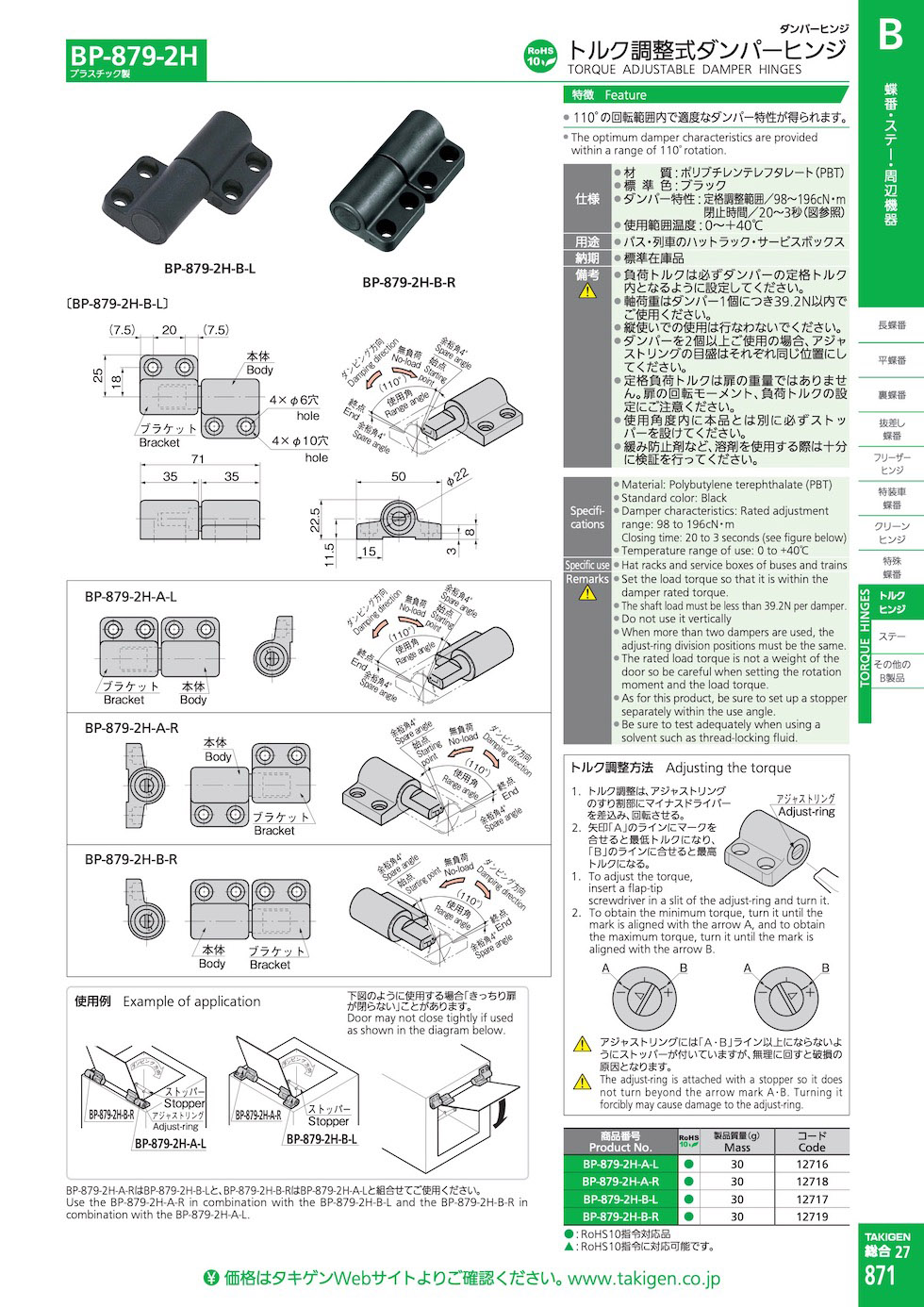

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| BP-879-2H-A-L |
|
12716 | ||||
| BP-879-2H-A-R |
|
12718 | ||||
| BP-879-2H-B-L |
|
12717 | ||||
| BP-879-2H-B-R |
|
12719 |
Features
- The optimum damper characteristics are provided within a range of 110°rotation.
Specifications
- Material: Polybutylene terephthalate (PBT)
- Standard color: Black
- Damper characteristics: Rated adjustment range: 98 to 196cN·m
Closing time: 20 to 3 seconds (see figure below) - Temperature range of use: 0 to +40°C
Specific Use
- Hat racks and service boxes of buses and trains
Remarks
- Set the load torque so that it is within the damper rated torque.
- The shaft load must be less than 39.2N per damper.
- Do not use it vertically
- When more than two dampers are used, the adjust-ring division positions must be the same.
- The rated load torque is not a weight of the door so be careful when setting the rotation moment and the load torque.
- As for this product, be sure to set up a stopper separately within the use angle.
- Be sure to test adequately when using a solvent such as thread-locking fluid.
