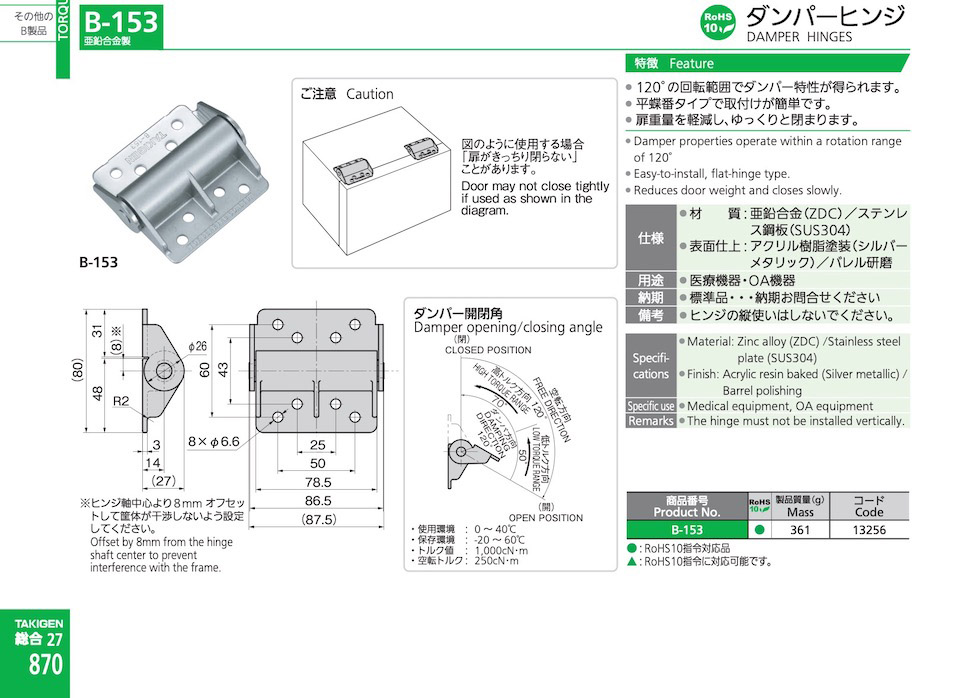

B-153
DAMPER HINGES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-153 |
|
13256 |
Features
- Damper properties operate within a rotation range of 120°
- Easy-to-install, flat-hinge type.
- Reduces door weight and closes slowly.
Specifications
- Material: Zinc alloy (ZDC) /Stainless steel plate (SUS304)
- Finish: Acrylic resin baked (Silver metallic) /Barrel polishing
Specific Use
- Medical equipment, OA equipment
Remarks
- The hinge must not be installed vertically.
