BP-154
DAMPER HINGES

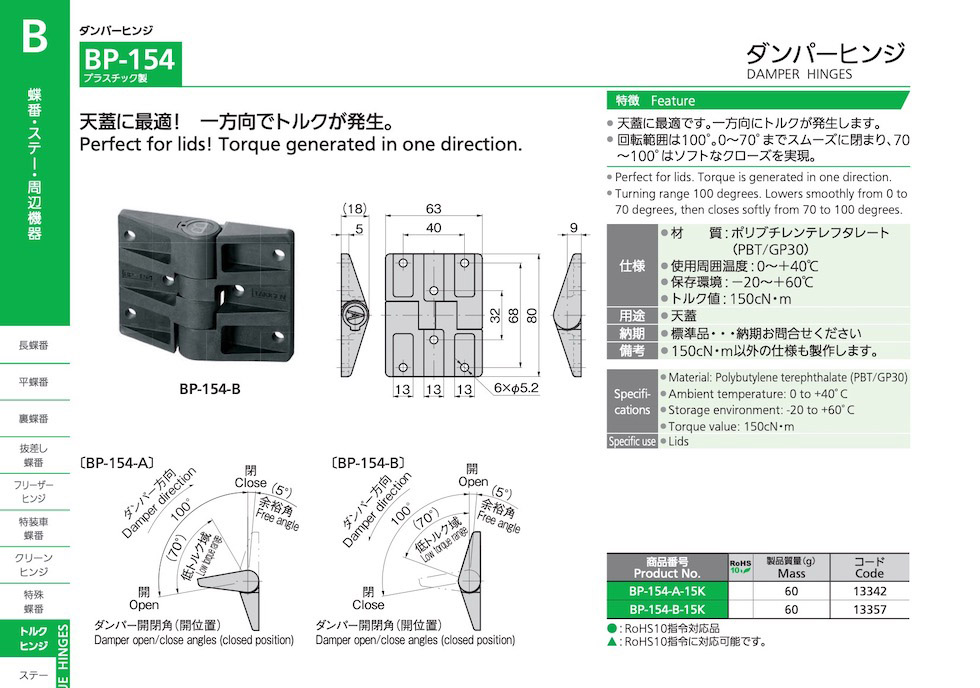

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| BP-154-A-15K | 13342 | |||||
| BP-154-B-15K | 13357 |
Features
- Perfect for lids. Torque is generated in one direction.
- Turning range 100 degrees. Lowers smoothly from 0 to 70 degrees, then closes softly from 70 to 100 degrees.
Specifications
- Material: Polybutylene terephthalate (PBT/GP30)
- Ambient temperature: 0 to +40°C
- Storage environment: -20 to +60°C
- Torque value: 150cN·m
Specific Use
- Lids
