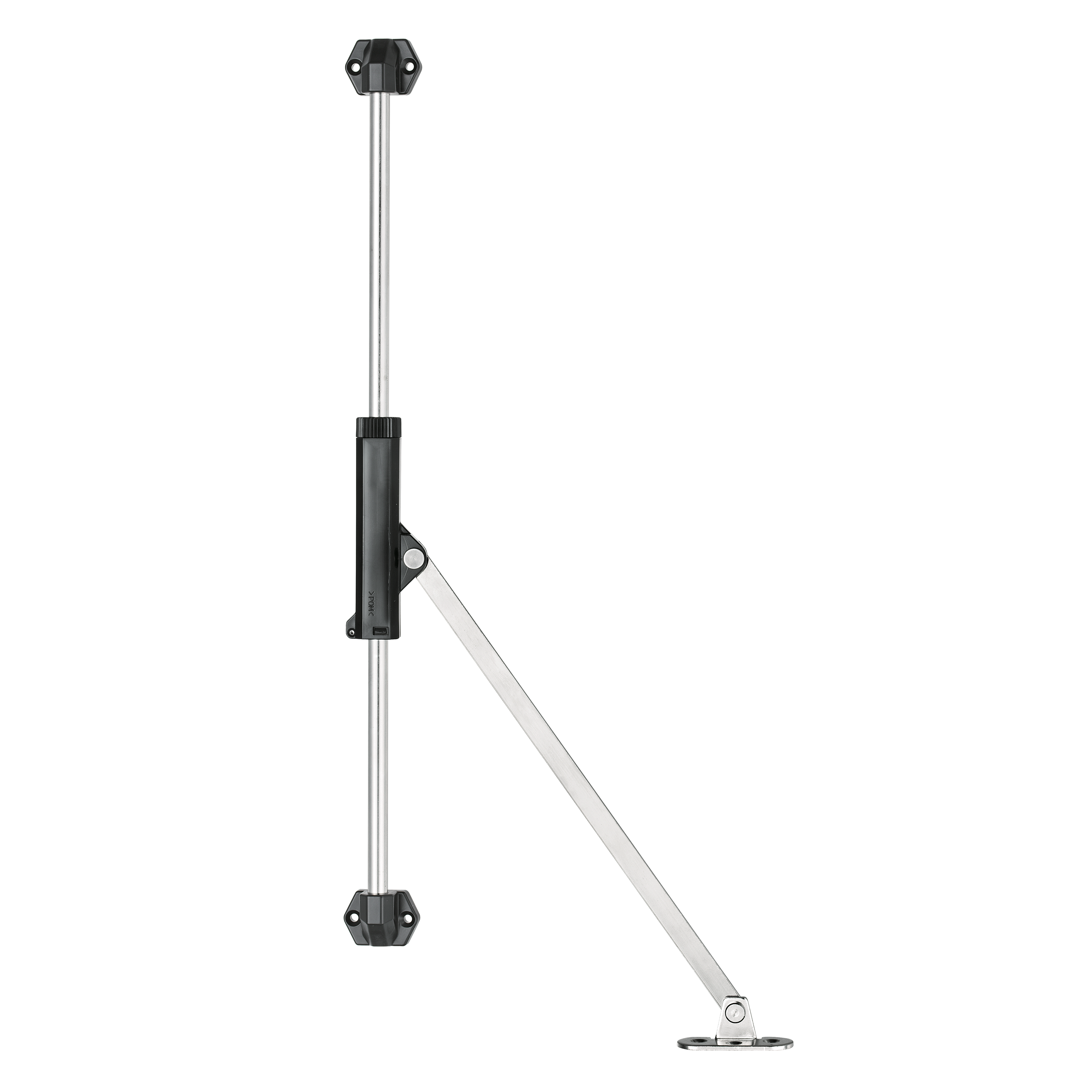

B-1479
STAINLESS STEEL FREE ONE-TOUCH STAYS

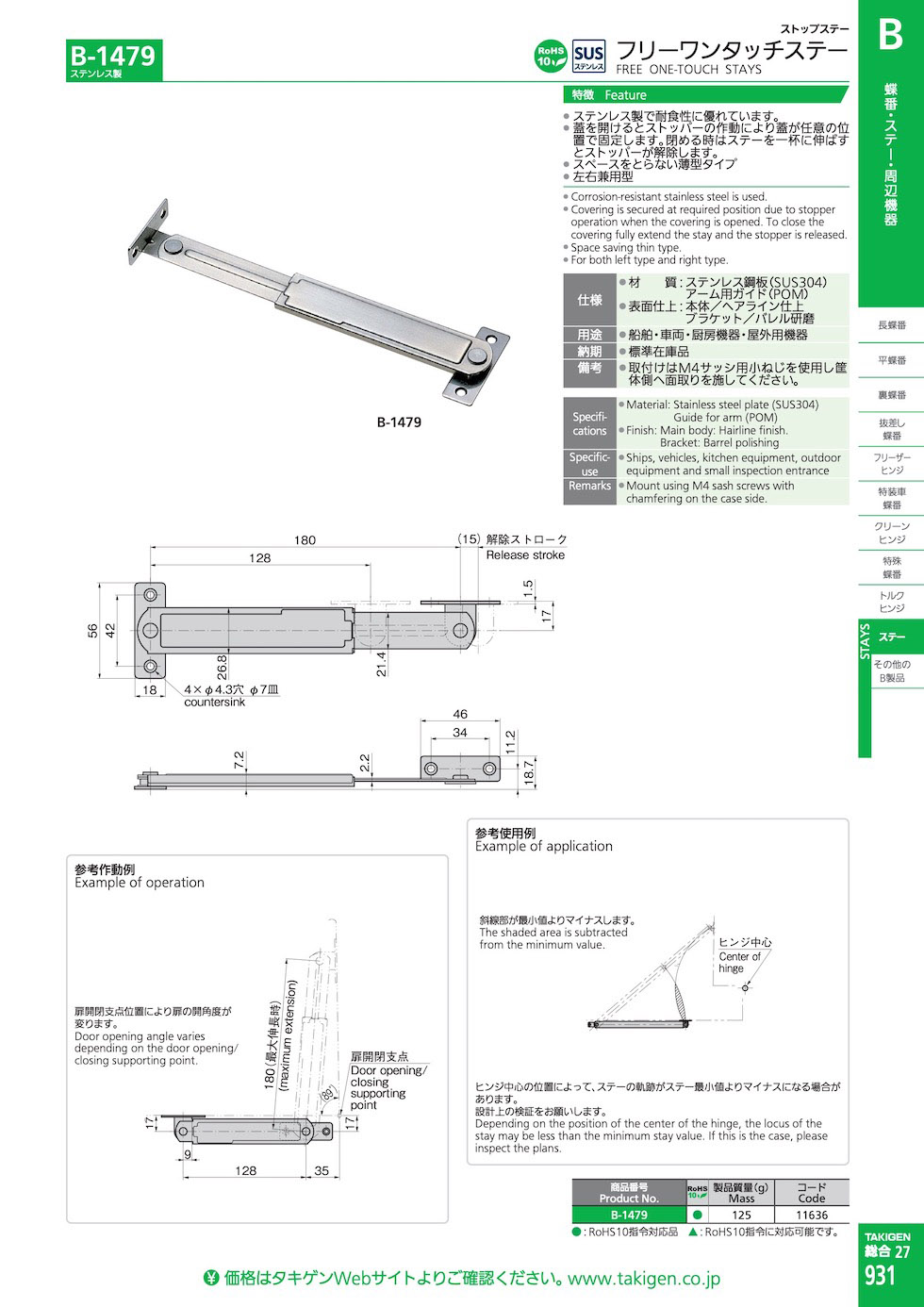

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-1479 |
|
11636 |
Features
- Corrosion-resistant stainless steel is used.
- Covering is secured at required position due to stopper operation when the covering is opened. To close the covering fully extend the stay and the stopper is released.
- Space saving thin type.
- For both left type and right type.
Specifications
- Material: Stainless steel plate (SUS304)
Guide for arm (POM) - Finish: Main body: Hairline finish.
Bracket: Barrel polishing
Specific Use
- Ships, vehicles, kitchen equipment, outdoor equipment and small inspection entrance
Remarks
- Mount using M4 sash screws with chamfering on the case side.
