B-457NB
FRICTION STAYS FOR FRONT COVERS

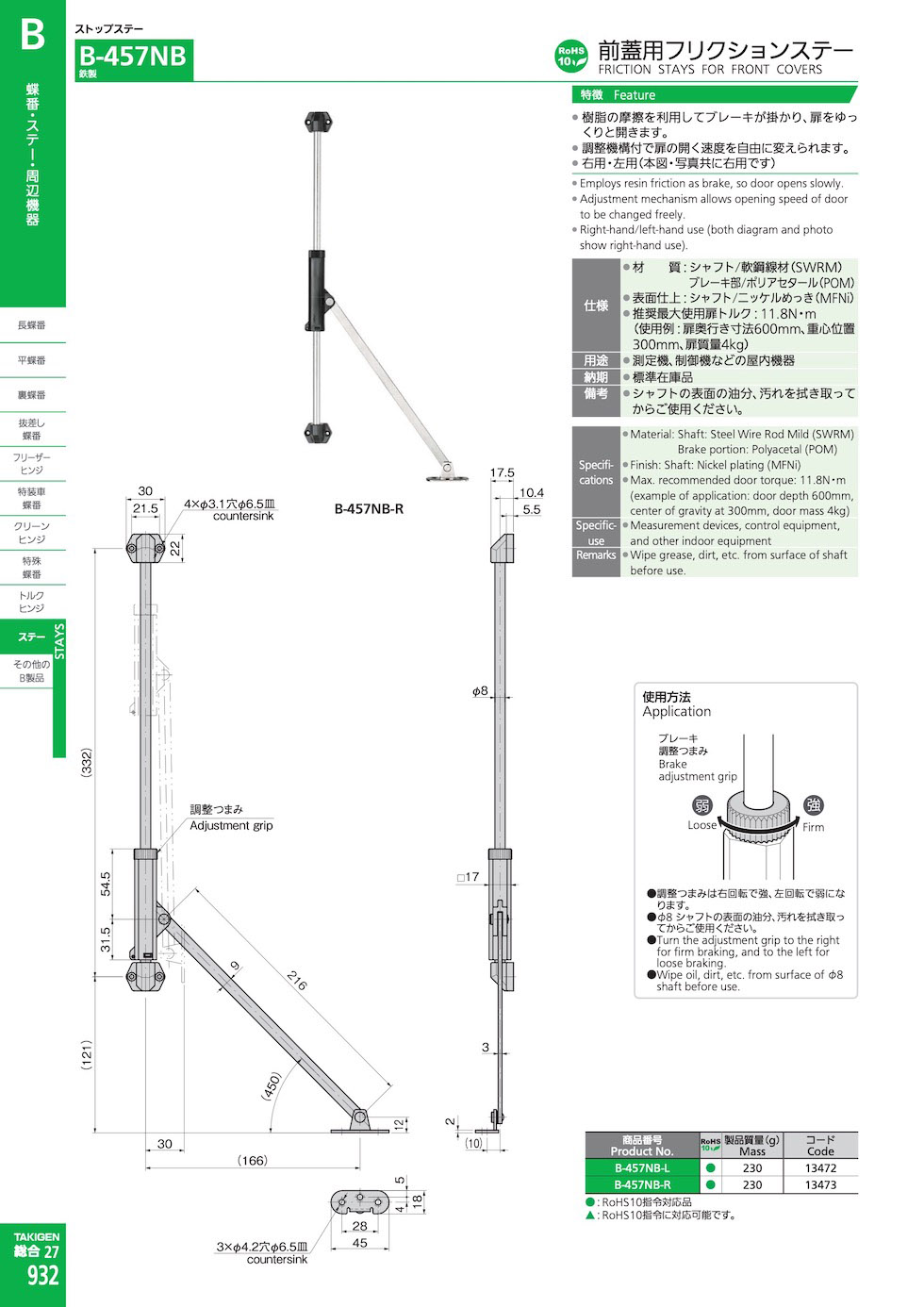

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-457NB-L |
|
13472 | ||||
| B-457NB-R |
|
13473 |
Features
- Employs resin friction as brake, so door opens slowly.
- Adjustment mechanism allows opening speed of door to be changed freely.

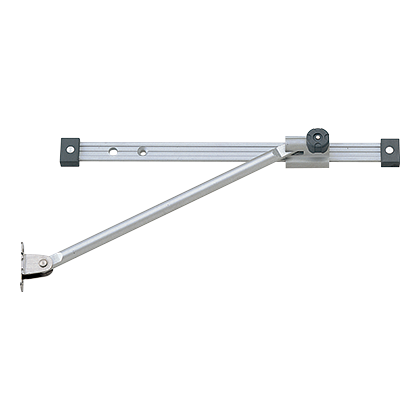

- Right-hand/left-hand use (both diagram and photo show right-hand use).
Specifications
- Material: Shaft: Steel Wire Rod Mild (SWRM)
Brake portion: Polyacetal (POM) - Finish: Shaft: Nickel plating (MFNi)
- Max. recommended door torque: 11.8N·m (example of application: door depth 600mm, center of gravity at 300mm, door mass 4kg)
Specific Use
- Measurement devices, control equipment, and other indoor equipment
Remarks
- Wipe grease, dirt, etc. from surface of shaft before use.
