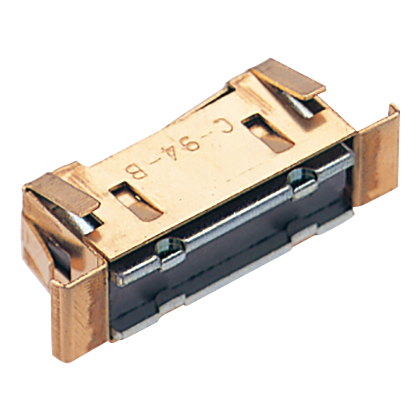

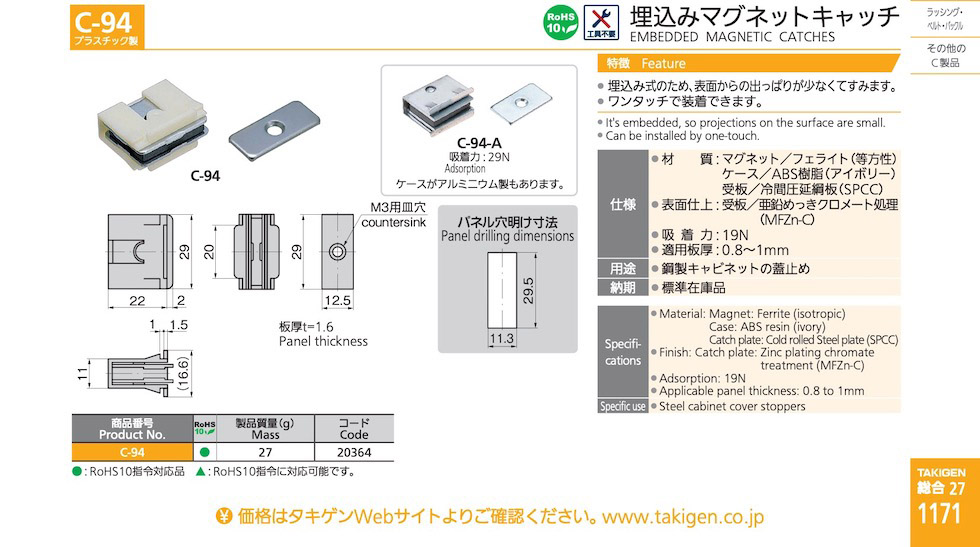

C-94
EMBEDDED MAGNETIC CATCHES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| C-94 |
|
20364 |
Features
- It's embedded, so projections on the surface are small.
- Can be installed by one-touch.
Specifications
- Material: Magnet: Ferrite (isotropic)
Case: ABS resin (ivory)
Catch plate: Cold rolled Steel plate (SPCC) - Finish: Catch plate: Zinc plating chromate treatment (MFZn-C)
- Adsorption: 19N
- Applicable panel thickness: 0.8 to 1mm
Specific Use
- Steel cabinet cover stoppers
