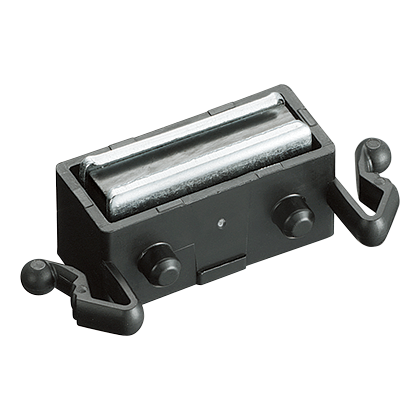

C-94-B

MAGNETIC CATCHES

Catalogue View

MAGNETIC CATCHES

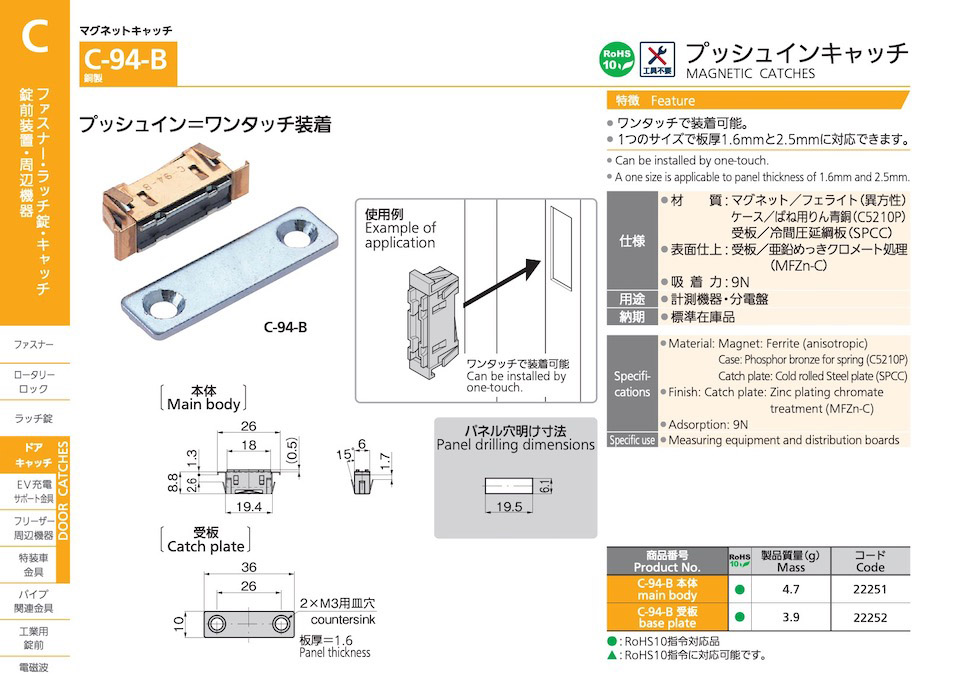

MAGNETIC CATCHES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-94-B main body 22251

Request for Quote
C-94-B base plate 22252

Request for Quote

Features

    • Can be installed by one-touch.
    • A one size is applicable to panel thickness of 1.6mm and 2.5mm.

Specifications

    • Material: Magnet: Ferrite (anisotropic)
      Case: Phosphor bronze for spring (C5210P)
      Catch plate: Cold rolled Steel plate (SPCC)
    • Finish: Catch plate: Zinc plating chromate treatment (MFZn-C)
    • Adsorption: 9N

Specific Use

    • Measuring equipment and distribution boards
