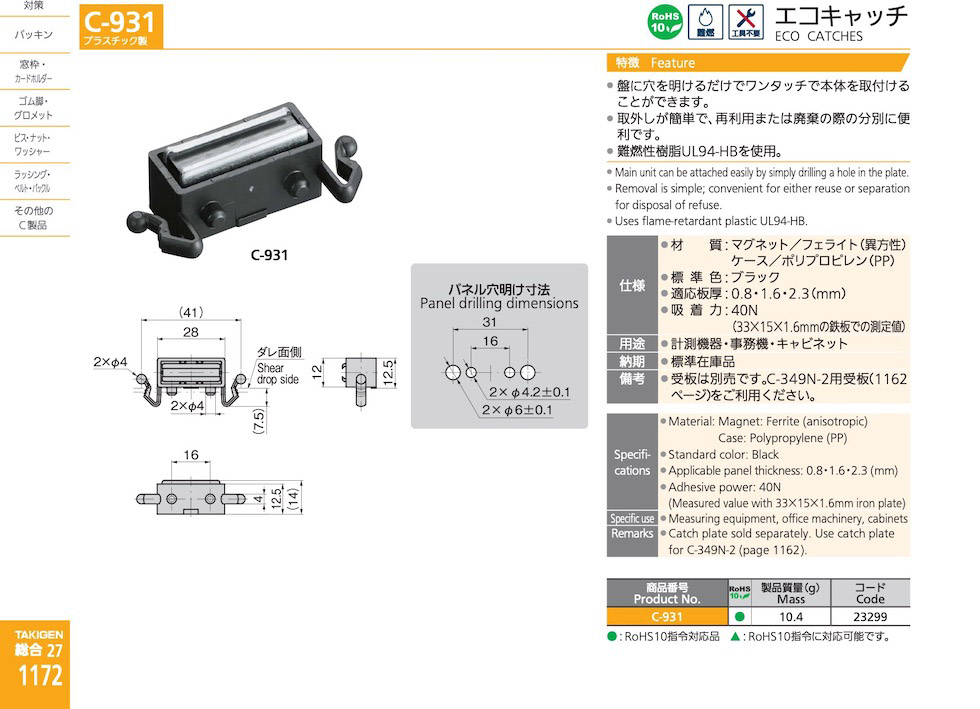

C-931
ECO CATCHES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| C-931 |
|
23299 |
Features
- Main unit can be attached easily by simply drilling a hole in the plate.
- Removal is simple; convenient for either reuse or separation for disposal of refuse.
- Uses flame-retardant plastic UL94-HB.
Specifications
- Material: Magnet: Ferrite (anisotropic)
Case: Polypropylene (PP) - Standard color: Black
- Applicable panel thickness: 0.8·1.6·2.3 (mm)
- Adhesive power: 40N
(Measured value with 33×15×1.6mm iron plate)
Specific Use
- Measuring equipment, office machinery, cabinets
Remarks
- Catch plate sold separately. Use catch plate for C-349N-2 (page 1162).
