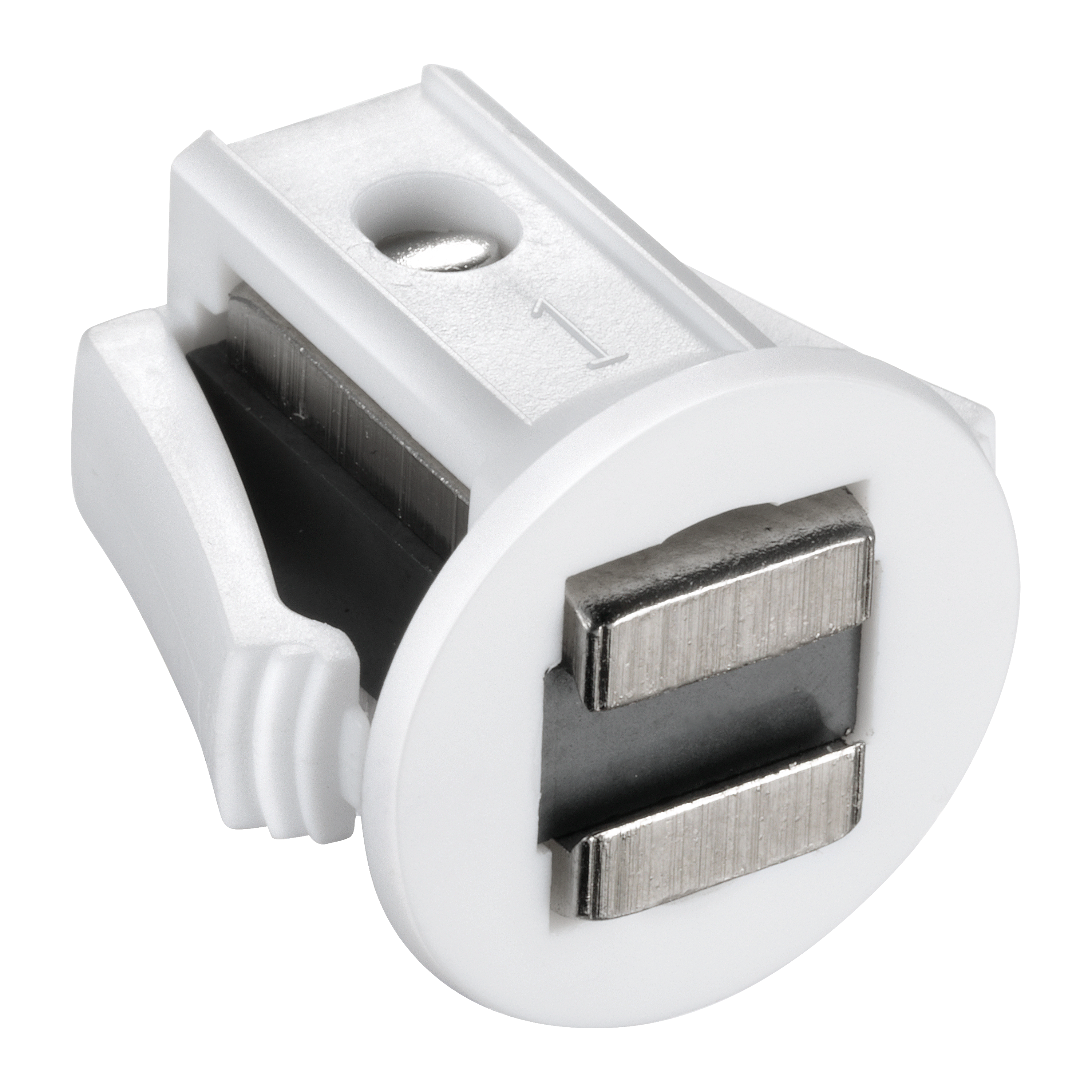

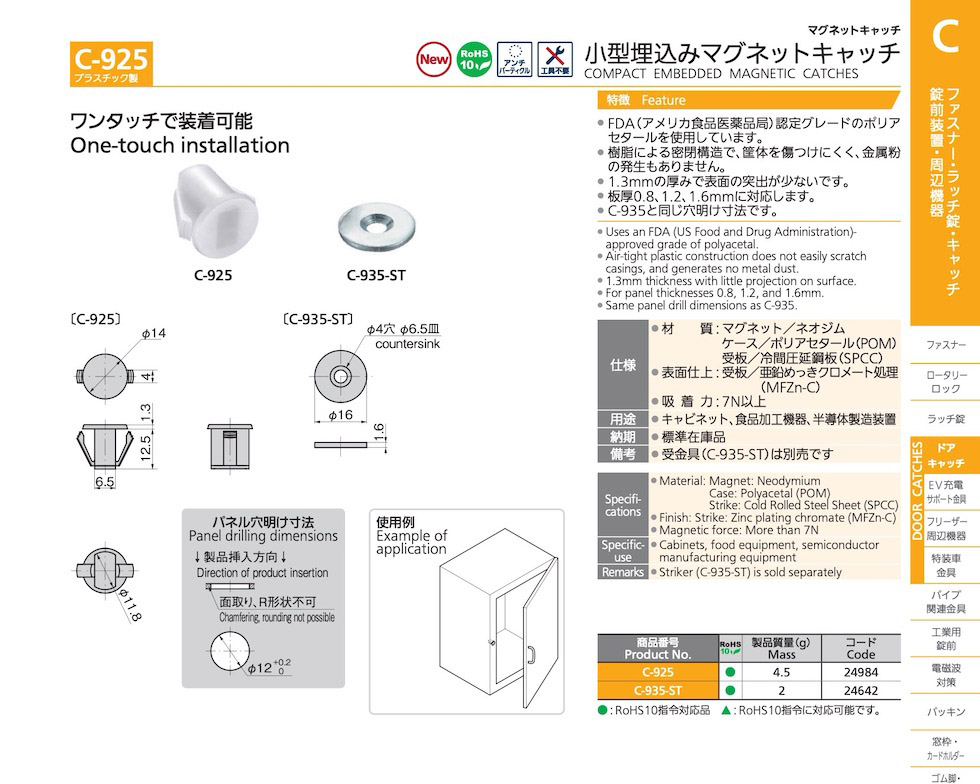

C-925
COMPACT EMBEDDED MAGNETIC CATCHES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| C-925 |
|
24984 | ||||
| C-935-ST |
|
24642 |
Features
- Uses an FDA (US Food and Drug Administration)-approved grade of polyacetal.
- Air-tight plastic construction does not easily scratch casings, and generates no metal dust.
- 1.3mm thickness with little projection on surface.
- For panel thicknesses 0.8, 1.2, and 1.6mm.
- Same panel drill dimensions as C-935.
Specifications
- Material: Magnet: Neodymium
Case: Polyacetal (POM)
Strike: Cold Rolled Steel Sheet (SPCC) - Finish: Strike: Zinc plating chromate (MFZn-C)
- Magnetic force: More than 7N
Specific Use
- Cabinets, food equipment, semiconductor manufacturing equipment
Remarks
- Striker (C-935-ST) is sold separately
