B-2004
SLIP-JOINT HINGES
B-1004
SLIP-JOINT HINGES
B-4
SLIP-JOINT HINGES

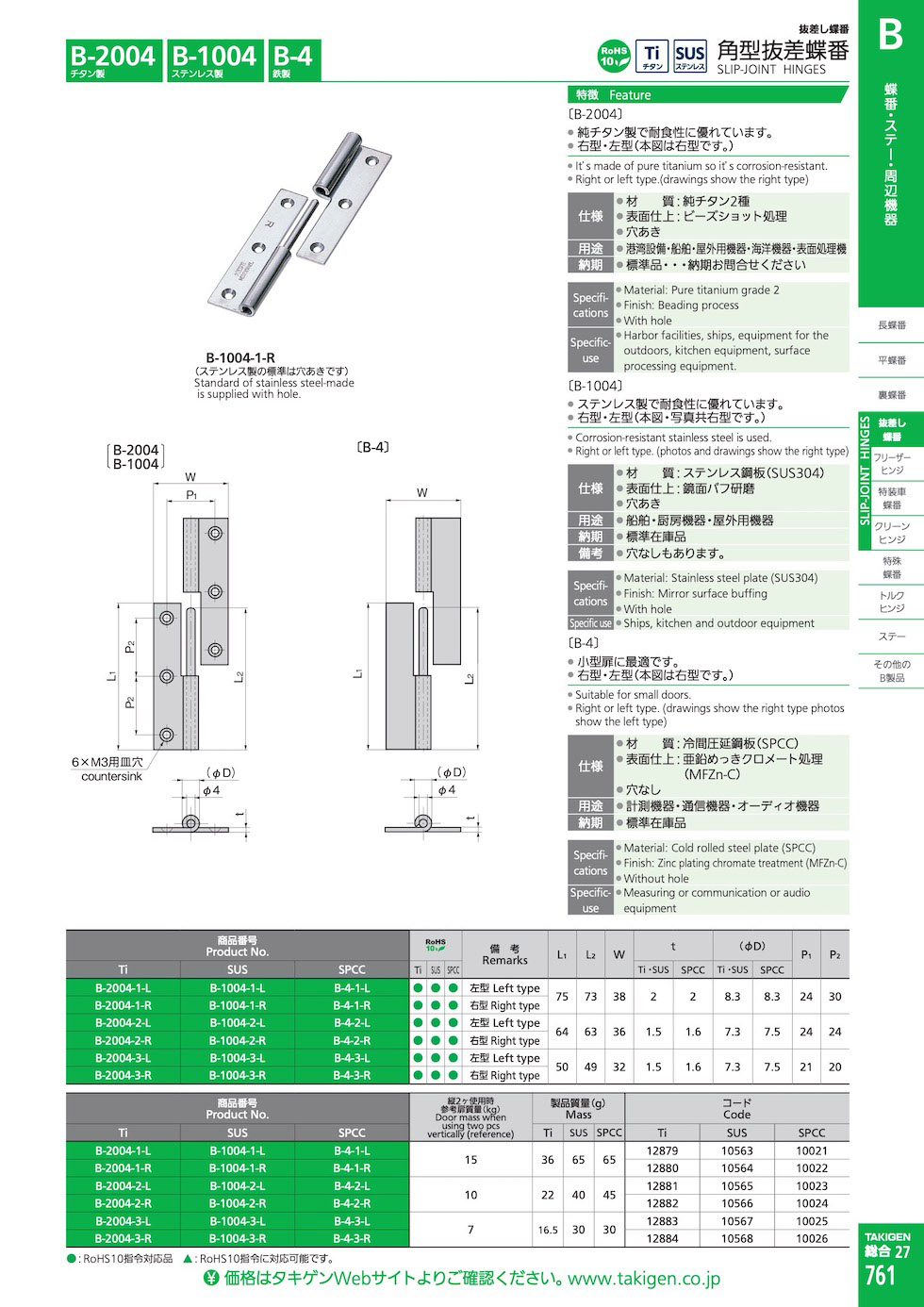

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-2004-1-L |
|
Left type | 12879 | |||
| B-2004-1-R |
|
Right type | 12880 | |||
| B-2004-2-L |
|
Left type | 12881 | |||
| B-2004-2-R |
|
Right type | 12882 | |||
| B-2004-3-L |
|
Left type | 12883 | |||
| B-2004-3-R |
|
Right type | 12884 | |||
| B-1004-1-L |
|
Left type | 10563 | |||
| B-1004-1-R |
|
Right type | 10564 | |||
| B-1004-2-L |
|
Left type | 10565 | |||
| B-1004-2-R |
|
Right type | 10566 | |||
| B-1004-3-L |
|
Left type | 10567 | |||
| B-1004-3-R |
|
Right type | 10568 | |||
| B-4-1-L |
|
Left type | 10021 | |||
| B-4-1-R |
|
Right type | 10022 | |||
| B-4-2-L |
|
Left type | 10023 | |||
| B-4-2-R |
|
Right type | 10024 | |||
| B-4-3-L |
|
Left type | 10025 | |||
| B-4-3-R |
|
Right type | 10026 |
Features
-
B-4
- Suitable for small doors.
- Right or left type. (drawings show the right type photos show the left type)
-
B-2004
- It’s made of pure titanium so it’s corrosion-resistant.
- Right or left type.(drawings show the right type)
-
B-1004
- Corrosion-resistant stainless steel is used.
- Right or left type. (photos and drawings show the right type)
Specifications
-
B-4
- Material: Cold rolled steel plate (SPCC)
- Finish: Zinc plating chromate treatment (MFZn-C)
- Without hole
-
B-2004
- Material: Pure titanium grade 2
- Finish: Beading process
- With hole
-
B-1004
- Material: Stainless steel plate (SUS304)
- Finish: Mirror surface buffing
- With hole
Specific Use
-
B-4
- Measuring or communication or audio equipment
-
B-2004
- Harbor facilities, ships, equipment for the outdoors, kitchen equipment, surface processing equipment.
-
B-1004
- Ships, kitchen and outdoor equipment
