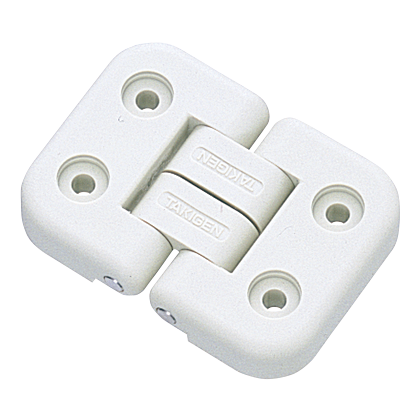

BP-19-1
MARINE HINGES
BP-19-2
MARINE HINGES
BP-19-3
MARINE HINGES

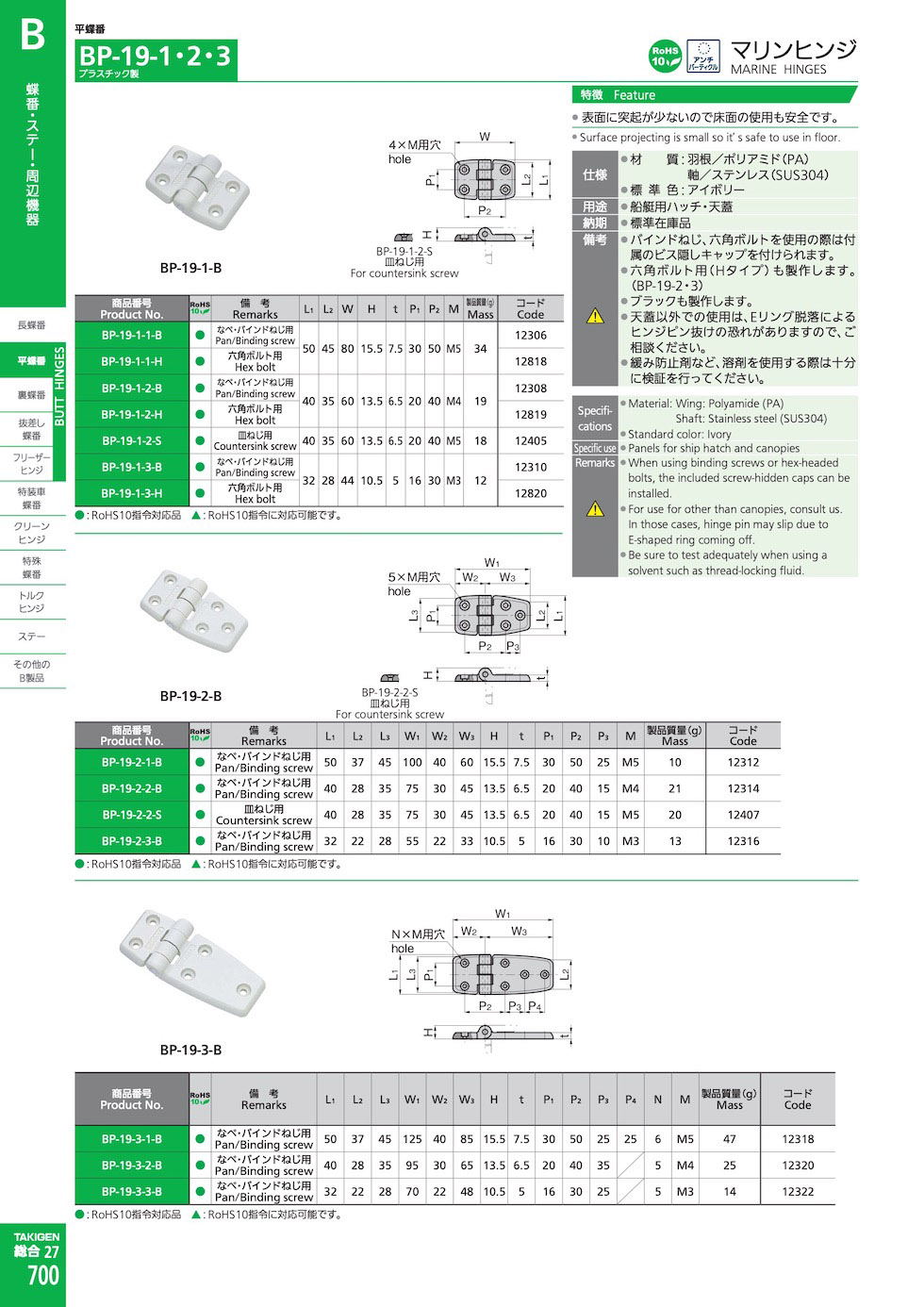

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| BP-19-1-1-B |
|
Pan/Binding screw | 12306 | |||
| BP-19-1-1-H |
|
Hex bolt | 12818 | |||
| BP-19-1-2-B |
|
Pan/Binding screw | 12308 | |||
| BP-19-1-2-H |
|
Hex bolt | 12819 | |||
| BP-19-1-2-S |
|
Countersink screw | 12405 | |||
| BP-19-1-3-B |
|
Pan/Binding screw | 12310 | |||
| BP-19-1-3-H |
|
Hex bolt | 12820 | |||
| BP-19-2-1-B |
|
Pan/Binding screw | 12312 | |||
| BP-19-2-2-B |
|
Pan/Binding screw | 12314 | |||
| BP-19-2-2-S |
|
Countersink screw | 12407 | |||
| BP-19-2-3-B |
|
Pan/Binding screw | 12316 | |||
| BP-19-3-1-B |
|
Pan/Binding screw | 12318 | |||
| BP-19-3-2-B |
|
Pan/Binding screw | 12320 | |||
| BP-19-3-3-B |
|
Pan/Binding screw | 12322 |
Features
- Surface projecting is small so it's safe to use in floor.
Specifications
- Material: Wing: Polyamide (PA)
Shaft: Stainless steel (SUS304) - Standard color: Ivory
Specific Use
- Panels for ship hatch and canopies
Remarks
- When using binding screws or hex-headed bolts, the included screw-hidden caps can be installed.
- For use for other than canopies, consult us. In those cases, hinge pin may slip due to E-shaped ring coming off.
- Be sure to test adequately when using a solvent such as thread-locking fluid.
